>> C << Retainer Lock Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not compress the valve spring excessively. It can damage the stem seal.
  1. Set special tool MD998735 or MD998772 as illustrated to compress the valve spring. Install the retainer locks.
  2. Relieve the spring tension and check that the retainer locks are seated correctly.
    Fig 1: Installing Retainer Locks
    G04538441Courtesy of DAIMLERCHRYSLER CORPORATION

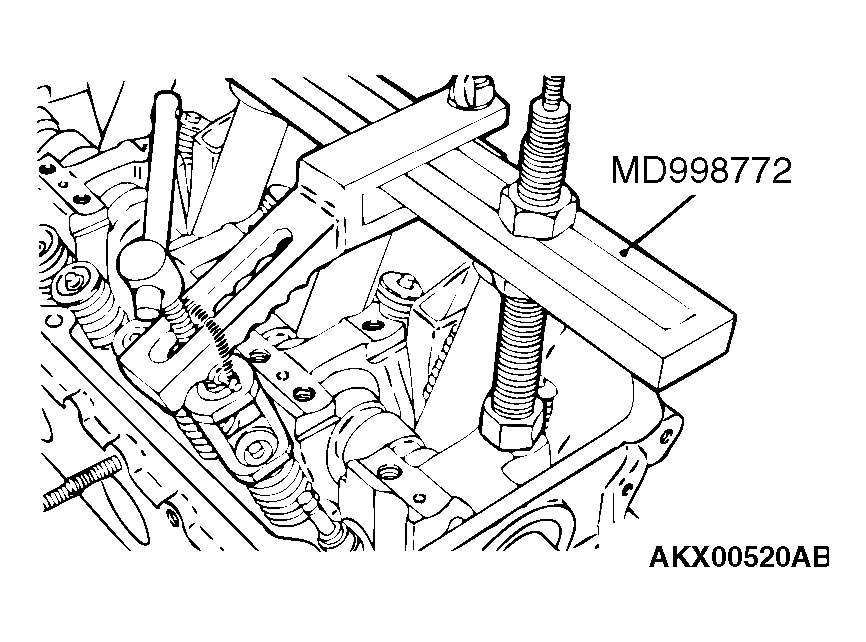

    Fig 2: Relieving Spring Tension
    G04538442Courtesy of DAIMLERCHRYSLER CORPORATION
