Cylinder Head
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

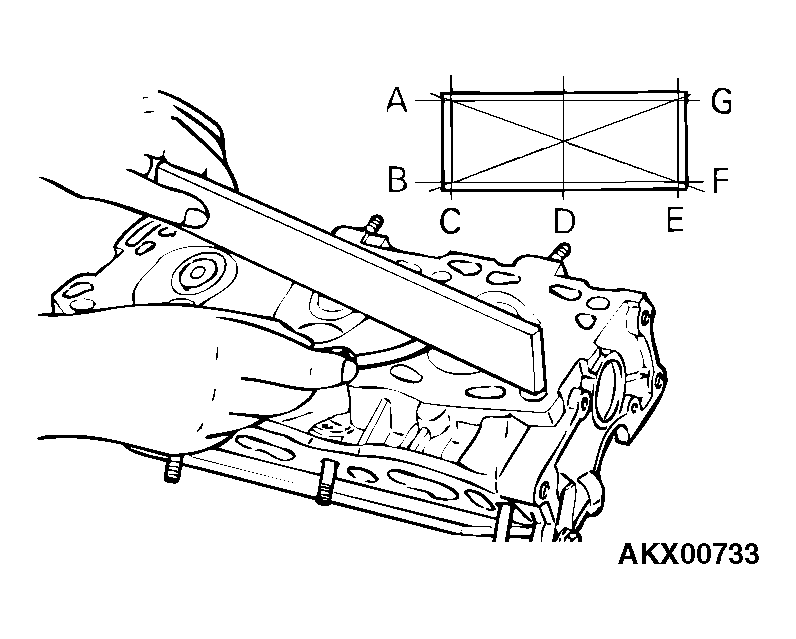

- Check the cylinder head gasket surface for flatness by using a straightedge and feeler gauge in the directions of A through G shown in the illustration.
Standard value: 0.03 mm (0.0012 inch)
Limit: 0.2 mm (0.007 inch)
- If it exceeds the limit, correct to meet the specification.
Grinding limit: *0.2 mm (0.007 inch) *Includes combined with cylinder block grinding.
Cylinder head height (specification when new): 120 mm (4.7 inches)
