>> D << Bearing Cap/Bearing Cap Bolt Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

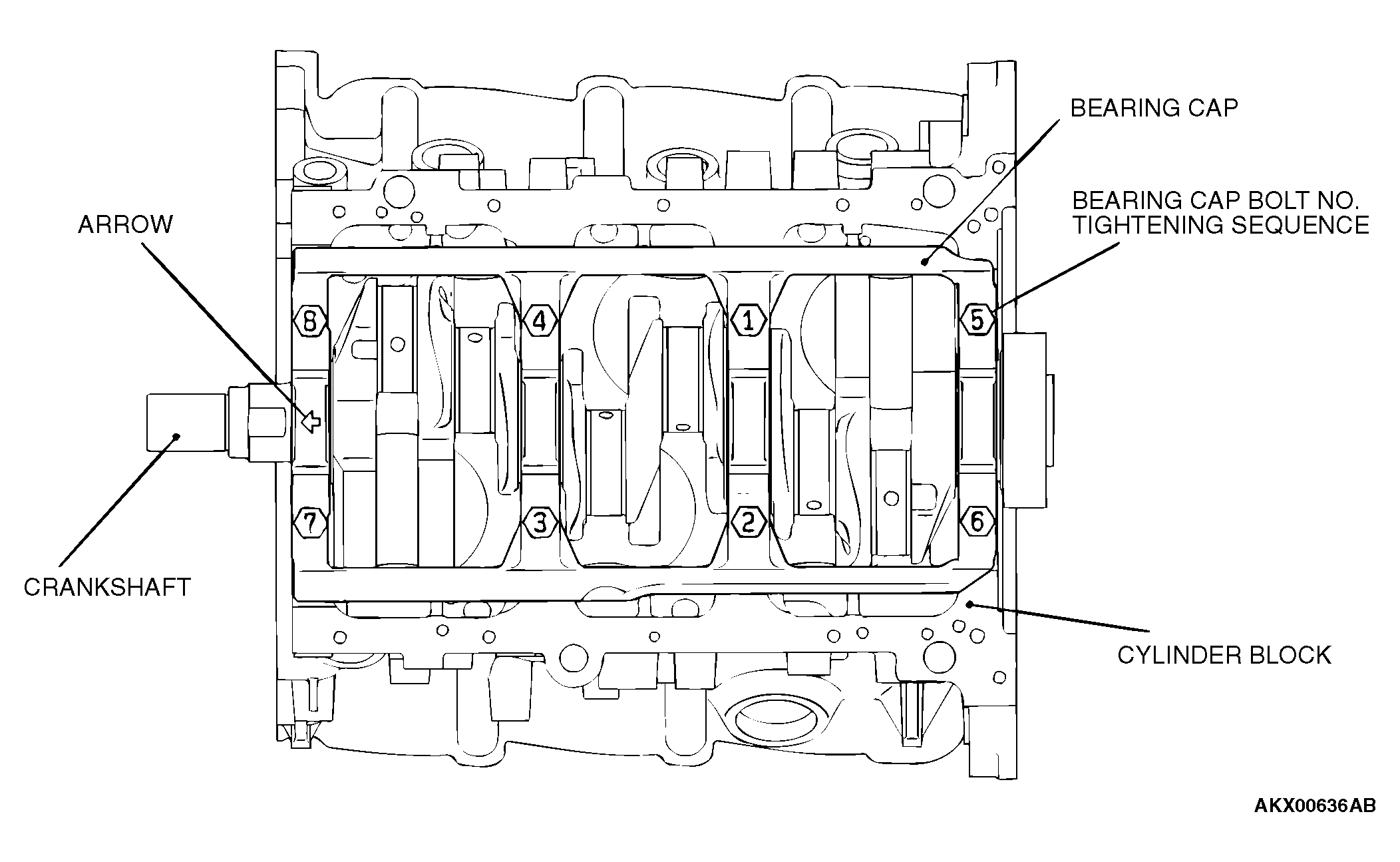

Fig 1: Installing Bearing Cap On Cylinder Block

Courtesy of DAIMLERCHRYSLER CORPORATION

Install the bearing cap on the cylinder block, so that the arrow points to the timing belt side.
Tighten the bearing cap bolts to 93 +/- 5 N.m (69 +/- 4 ft-lb) in the specified tightening sequence.
Check that the crankshaft rotates smoothly.
Check the end play. If it exceeds the limit value, replace the thrust bearing.
Standard value: 0.05 - 0.25 mm (0.002 - 0.009 inch)

Limit: 0.3 mm (0.01 inch)

Fig 2: Tightening Bearing Cap Bolts
Courtesy of DAIMLERCHRYSLER CORPORATION
