<< A >> Rocker Arms And Rocker Arm Shaft Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the lash adjuster is re-used, clean the lash adjuster. (Refer to >> C << CAMSHAFT OIL SEAL INSTALLATION  )

Set special tool MD998443 to prevent the lash adjuster coming free and falling to the floor.

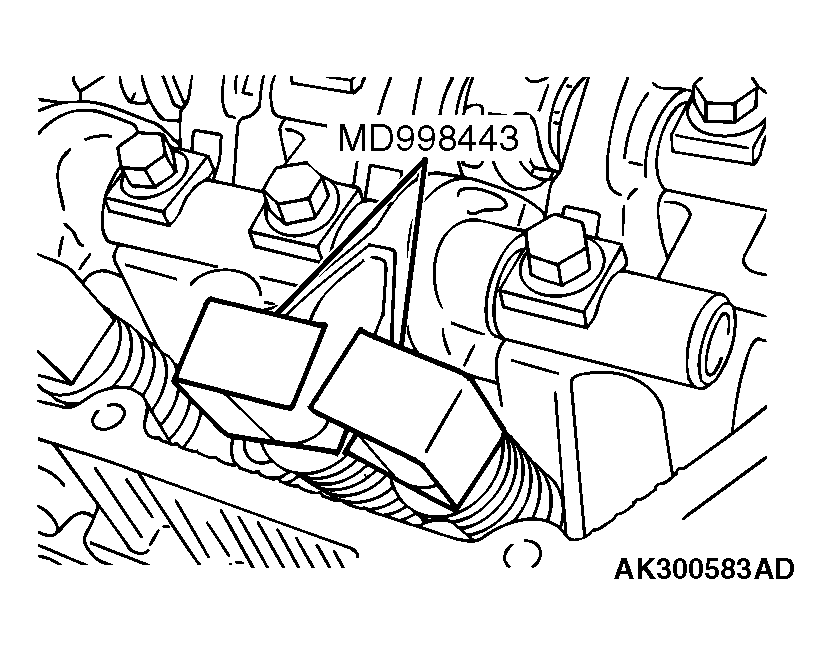

Fig 1: Identifying Lash Adjuster Special Tool MD998443
G04538211Courtesy of DAIMLERCHRYSLER CORPORATION
