Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

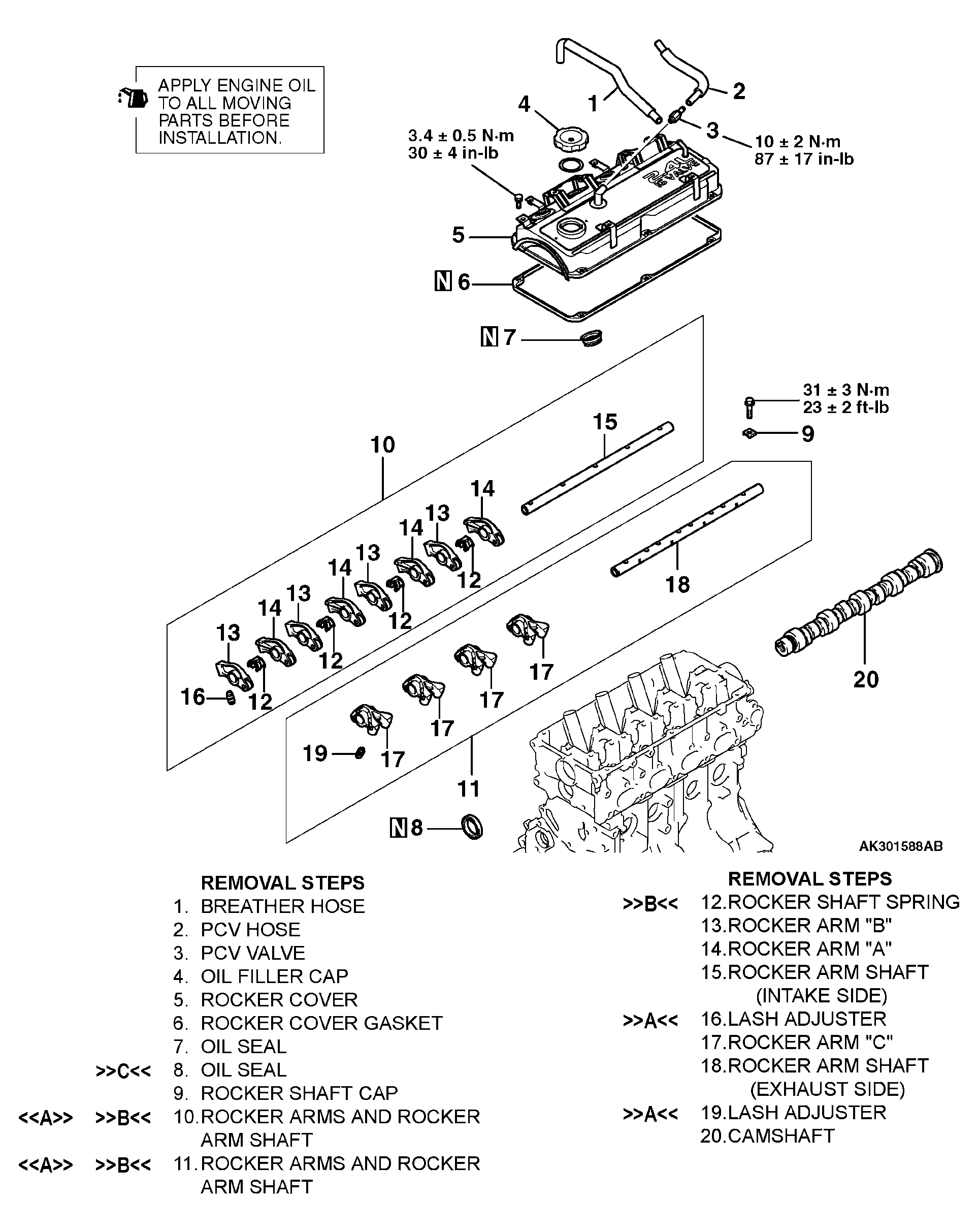

Fig 1: Identifying Rocker Arms And Camshaft Components With Specified Torque
G04538210Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:
