>> B << Rocker Shaft Spring/Rocker Arms And Rocker Arm Shaft Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the exhaust side rocker arm "C"/shaft assembly to the cylinder head.
  2. Install the inlet side rocker arm "A" and "B"/shaft assembly to the cylinder head.
  3. Install the rocker shaft spring to the intake side rocker arm shaft as illustrated.

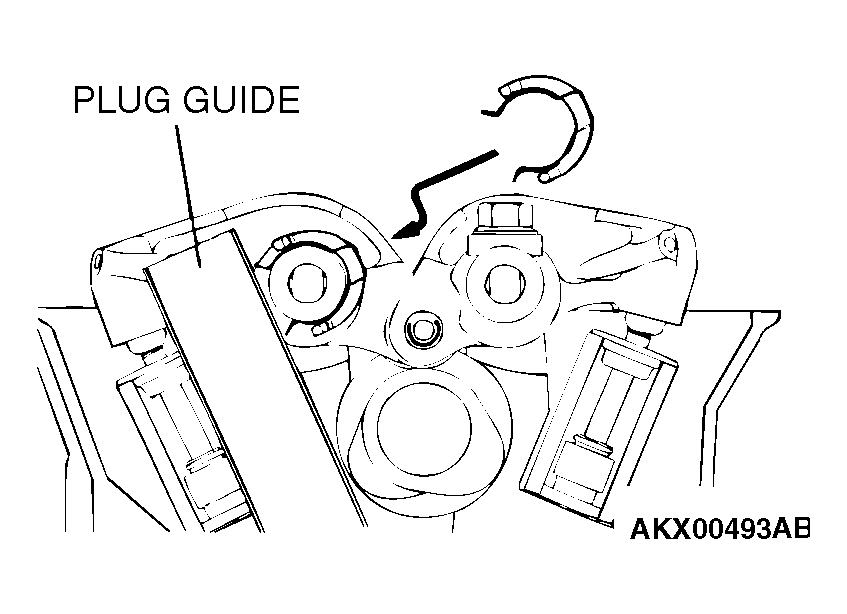

    Fig 1: Installing Rocker Shaft Spring/Rocker Arms And Rocker Arm Shaft
    G04538213Courtesy of DAIMLERCHRYSLER CORPORATION
  4. Make sure that the notch in the end of the rocker arm shaft is facing the direction as shown.
    Fig 2: Identifying Notch In End Of Rocker Arm Shaft
    G04538214Courtesy of DAIMLERCHRYSLER CORPORATION
