Rocker Arms And Camshaft: Inspection: Camshaft
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

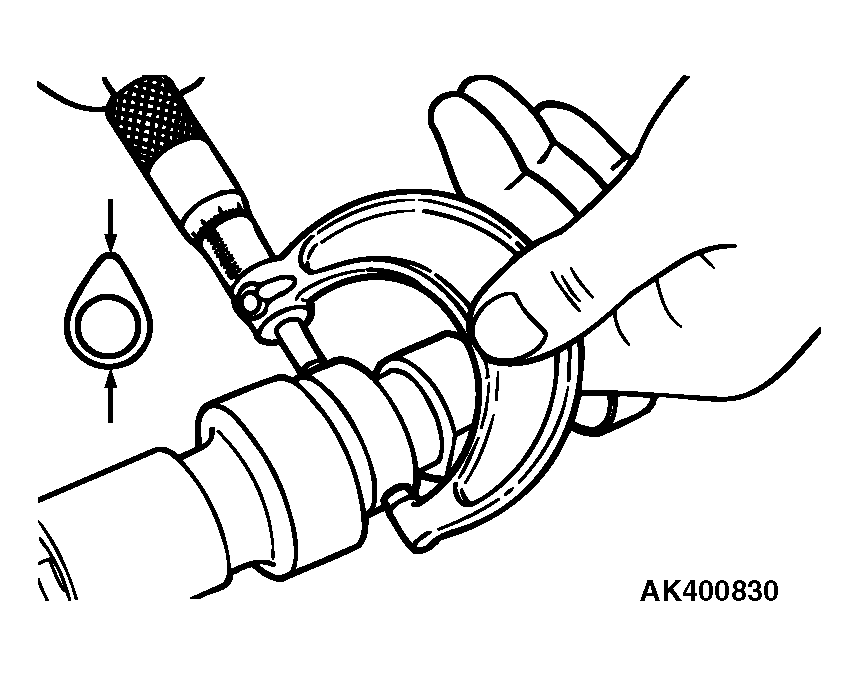

Measure the cam height. If it is below the limit, replace the camshaft.
CAM HEIGHT DESCRIPTION
| |
STANDARD VALUE |
MINIMUM LIMIT |
| Intake |
37.39 mm (1.472 in) |
36.89 mm (1.452 in) |
| Exhaust |
M/T |
37.14 mm (1.462 in) |
36.64 mm (1.443 in) |
| A/T |
36.83 mm (1.450 in) |
36.33 mm (1.430 in) |
Courtesy of DAIMLERCHRYSLER CORPORATION
