>> D << Connecting Rod Bearing Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

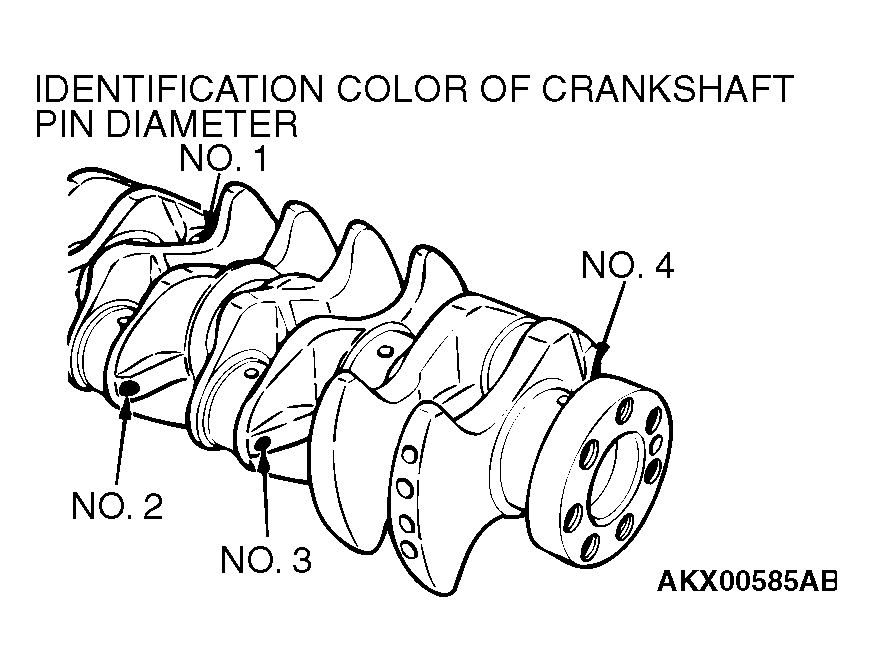

Measure the crankshaft pin diameter and confirm its classification from the following table. In the case of a crankshaft supplied as a service part, identification colors/marks of its pins are painted / stamped at the positions shown in the illustration.

Fig 1: Measuring Crankshaft Pin Diameter

Courtesy of DAIMLERCHRYSLER CORPORATION

CRANKSHAFT PIN OUTSIDE DIAMETER

CRANKSHAFT PIN OUTSIDE DIAMETER		CONNECTING ROD BEARING
IDENTIFICATION MARK OR COLOR	SIZE mm (in)	IDENTIFICATION MARK OR COLOR
I or Yellow	44.995 - 45.000 (1.7715 - 1.7717)	1 or Yellow
II or None	44.985 - 44.995 (1.7711 - 1.7715)	2 or None
III or White	44.980 - 44.985 (1.7709 - 1.7711)	3 or Blue

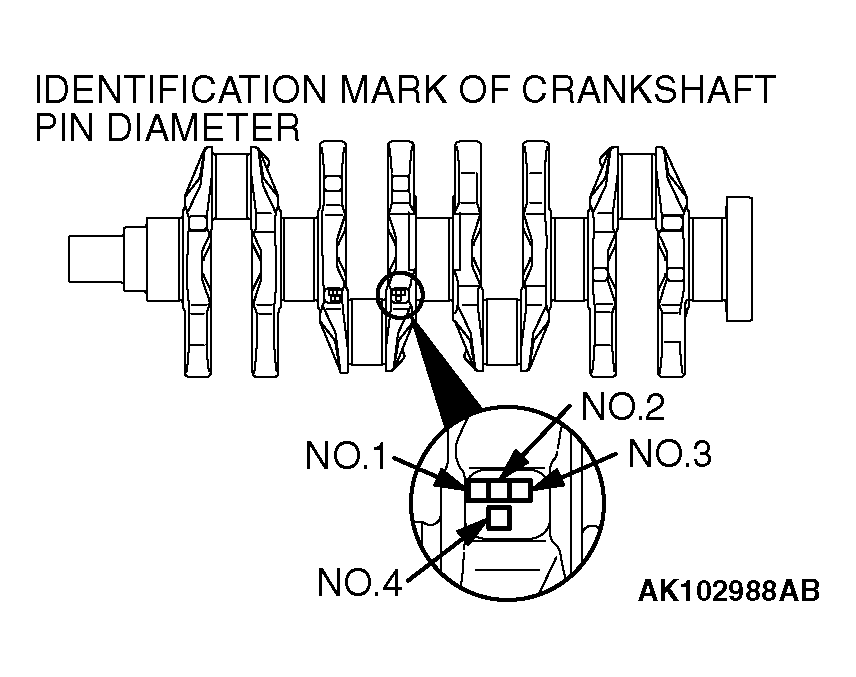

Fig 2: Measuring Crankshaft Pin Diameter

Courtesy of DAIMLERCHRYSLER CORPORATION

If the crankshaft pin outside diameter identification color is yellow, for example, select a bearing whose identification mark is 1 or identification color is yellow.
If there is no identification color paint on the crankshaft, measure the pin outside diameter and select a bearing appropriate for the measured value.
Install the selected bearing in the big end and in the cap of the connecting rod.

Fig 3: Installing Bearing
Courtesy of DAIMLERCHRYSLER CORPORATION
