<< E >> Counterbalance Shaft Rear Bearing Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install special tools MB991603 and MD998372 in front of the cylinder block when removing the left counterbalance shaft rear bearing.
  2. Using special tool MD998372, remove the right counterbalance shaft rear bearing from the cylinder block.

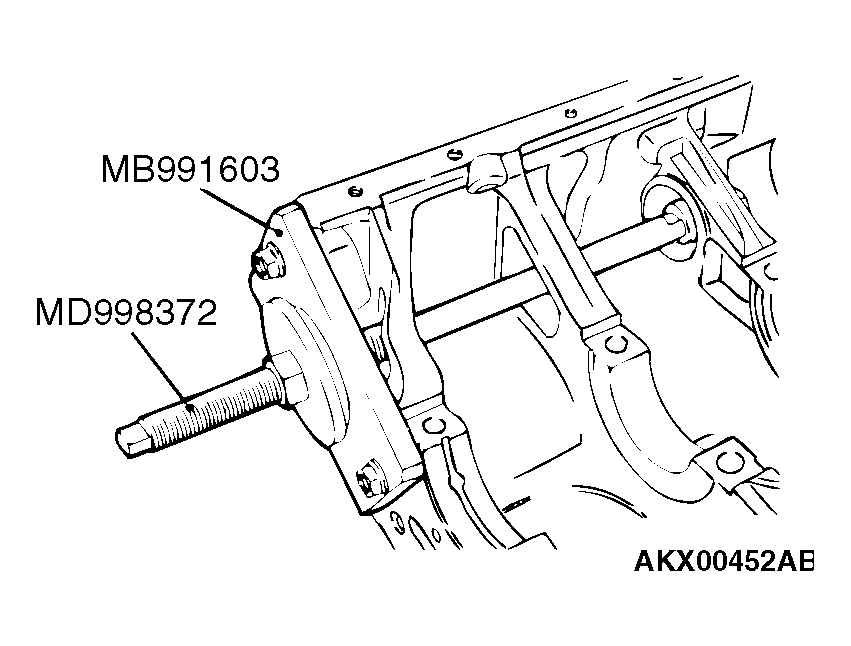

    Fig 1: Removing Counterbalance Shaft Rear Bearing Using Special Tool
    G04538254Courtesy of DAIMLERCHRYSLER CORPORATION
