<< C >> Flange Bolt Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the plug on the side of the cylinder block.
  2. Insert a Phillips screwdriver [shank diameter 8 mm (0.3 inch)] into the plug hole to lock the counterbalance shaft.

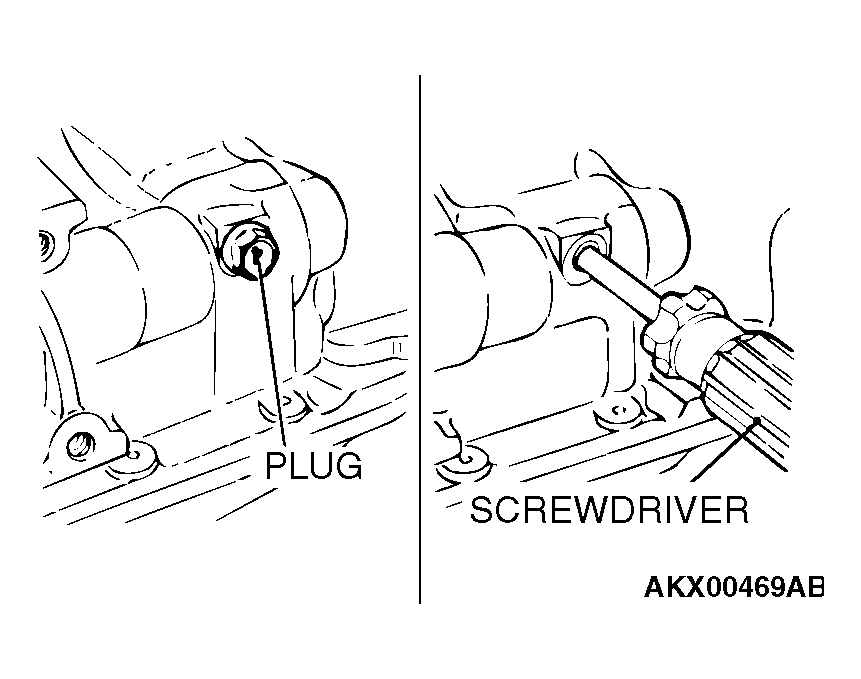

    Fig 1: Removing Flange Bolt Using Screwdriver
    G04538251Courtesy of DAIMLERCHRYSLER CORPORATION
  3. Loosen the flange bolt.

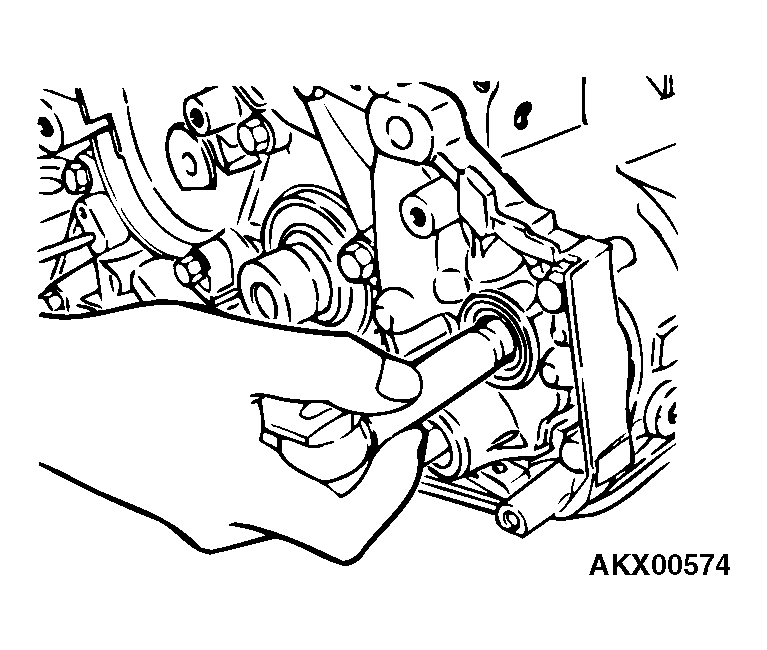

    Fig 2: Loosening Flange Bolt
    G04538252Courtesy of DAIMLERCHRYSLER CORPORATION
