<< B >> Plug Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit special tool MD998162 on the plug, and then hold it in position with special tool MD998783.
  2. Loosen the plug.
  3. Remove special tools MD998783 and MD998162 and then the plug.

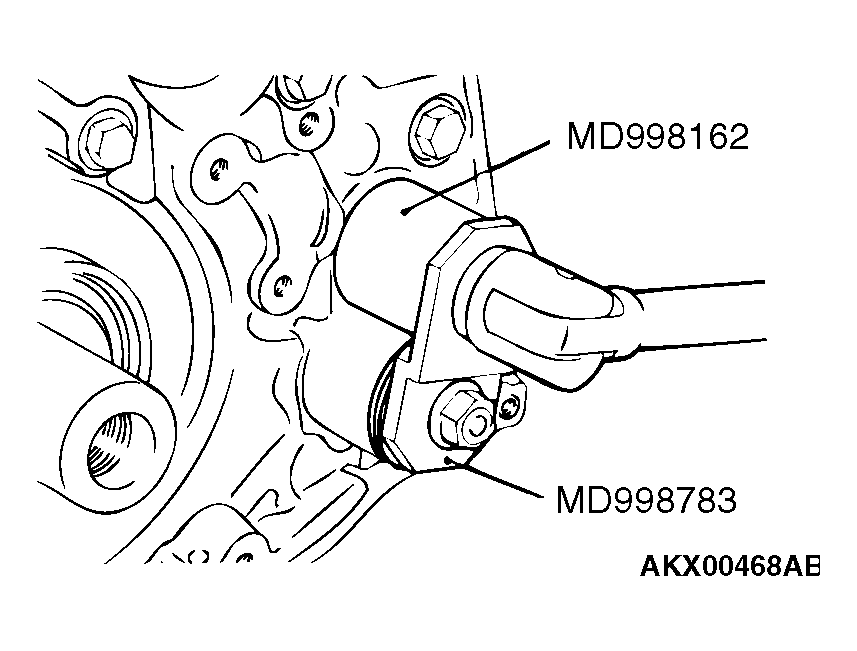

    Fig 1: Removing Plug Using Special Tool
    G04538250Courtesy of DAIMLERCHRYSLER CORPORATION
