>> J << Plug Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new O-ring to the groove of the front case.
  2. Install the plug to the front case.
  3. Fit special tool MD998162 on the plug, and then hold it in position with special tool MD998783.
  4. Tighten the plug to the specified torque.

    Tightening torque: 23 +/- 3 N.m (17 +/- 2 ft-lb)

  5. Remove special tools MD998783 and MD998162.

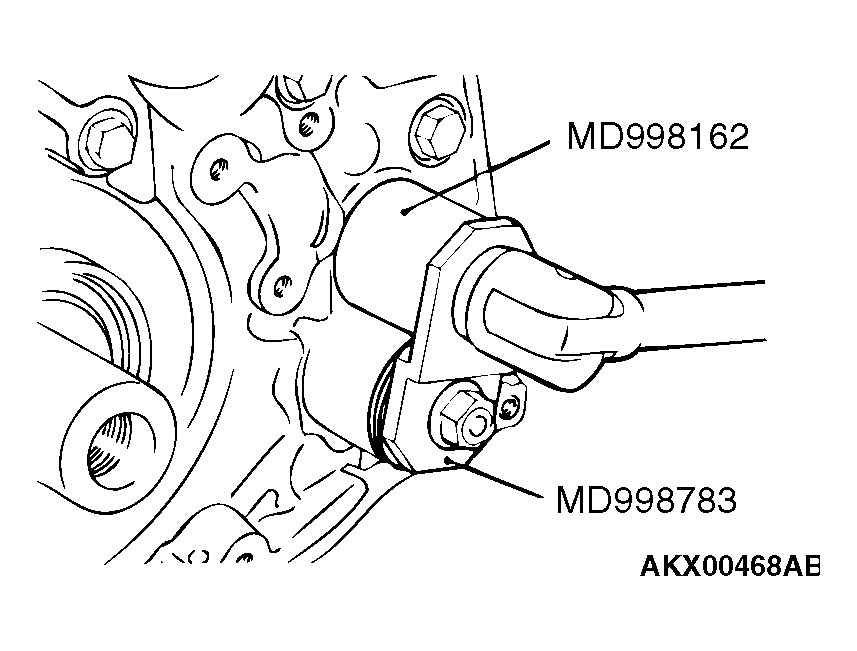

    Fig 1: Identifying Special Tools MD998783 And MD998162
    G04538267Courtesy of DAIMLERCHRYSLER CORPORATION
