>> G << Oil Pump Driven Gear/Oil Pump Drive Gear Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil pump gears into the front case and line up the alignment marks.

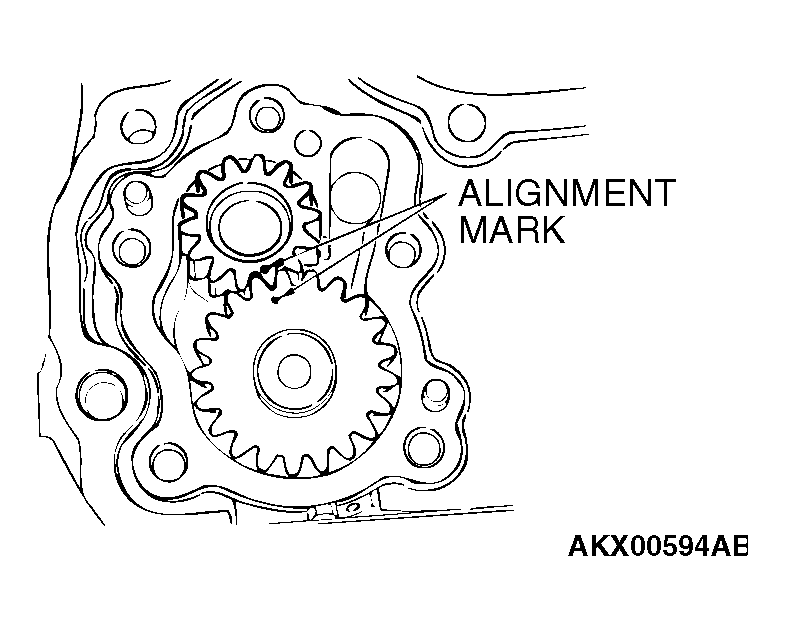

Fig 1: Installing Oil Pump Driven Gear/Oil Pump Drive Gear
G04538262Courtesy of DAIMLERCHRYSLER CORPORATION
