>> C << Counterbalance Shaft Front Bearing Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply engine oil to the front bearing outer surface and bearing hole in the cylinder.
  2. Using special tool MD998705, install the front bearing. Make sure that the oil hole of the bearing is aligned with that of the cylinder block.

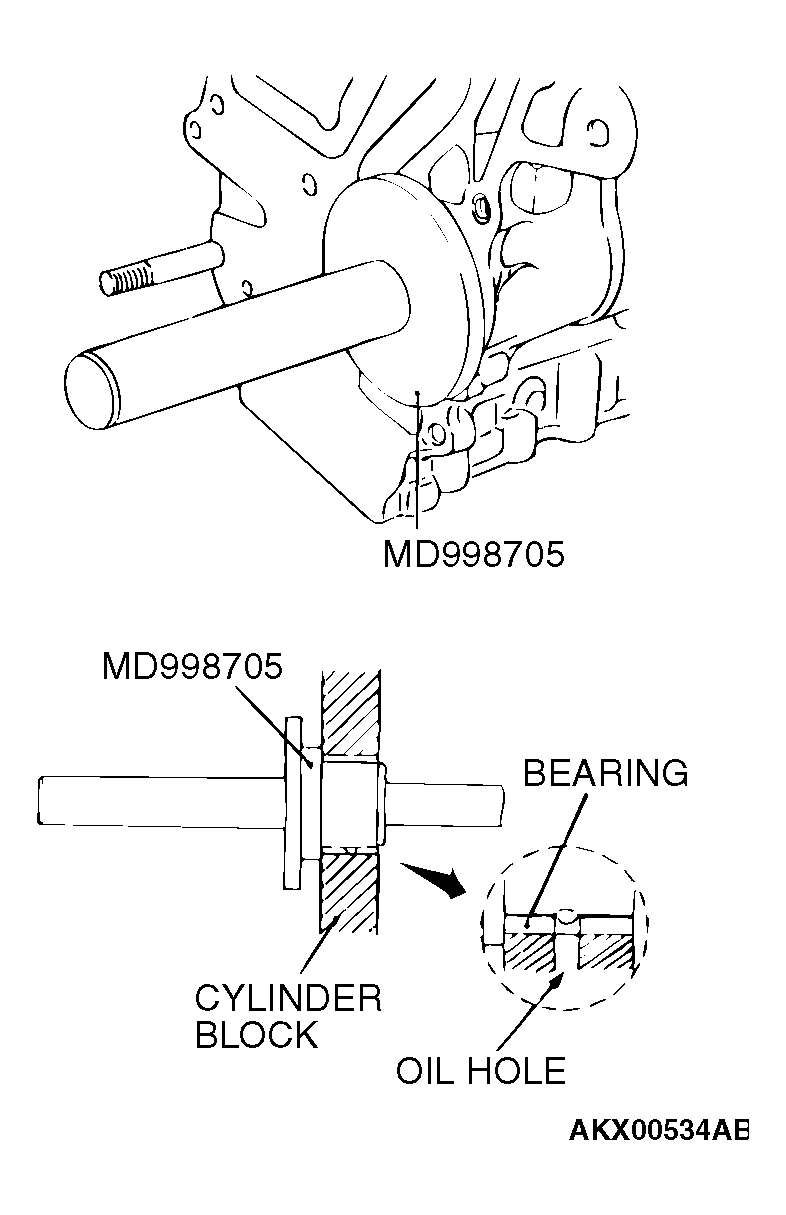

    Fig 1: Installing Counterbalance Shaft Front Bearing Using Special Tool
    G04538258Courtesy of DAIMLERCHRYSLER CORPORATION
