>> B << Left Counterbalance Shaft Rear Bearing Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install special tool MB991603 to the cylinder block.
  2. Apply engine oil to the rear bearing outer surface and bearing hole in the cylinder block.
  3. Using special tool MD998705, install the rear bearing.
    NOTE: The left rear bearing has no oil holes.

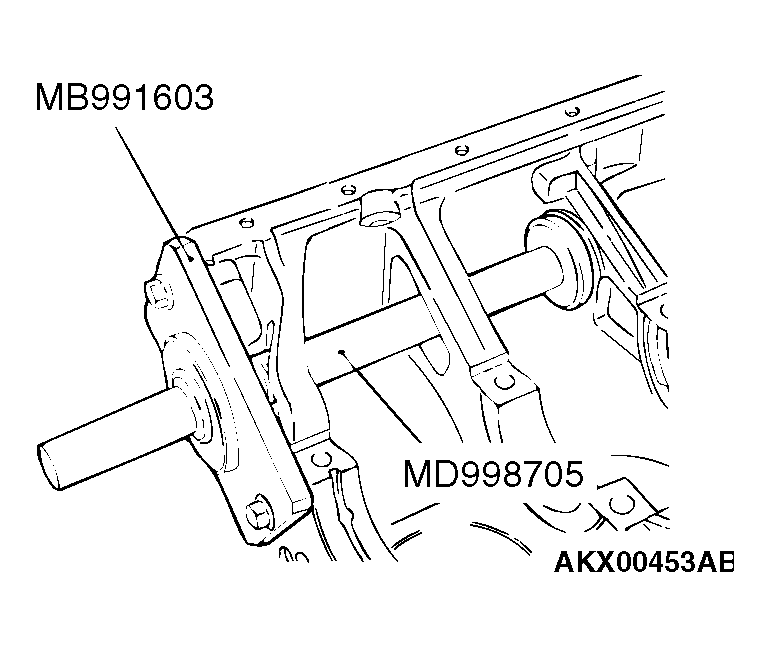

    Fig 1: Installing Left Counterbalance Shaft Rear Bearing Using Special Tool
    G04538256Courtesy of DAIMLERCHRYSLER CORPORATION
    Fig 2: Identifying Special Tool MD998705
    G04538257Courtesy of DAIMLERCHRYSLER CORPORATION
