>> B << Valve Spring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Install the valve spring with its identification color painted end (larger pitch side) upward (toward the valve spring retainer).

Fig 1: Installing Valve Spring

Courtesy of DAIMLERCHRYSLER CORPORATION

CAUTION: Do not compress the valve spring excessively. It can damage the stem seal.

Set special tool MD998735 or MD998772 as illustrated to compress the valve spring. Remove the retainer lock.
Relieve the spring tension. Check that the retainer locks are seated correctly.

Fig 2: Removing Retainer Lock Using Special Tool
Courtesy of DAIMLERCHRYSLER CORPORATION

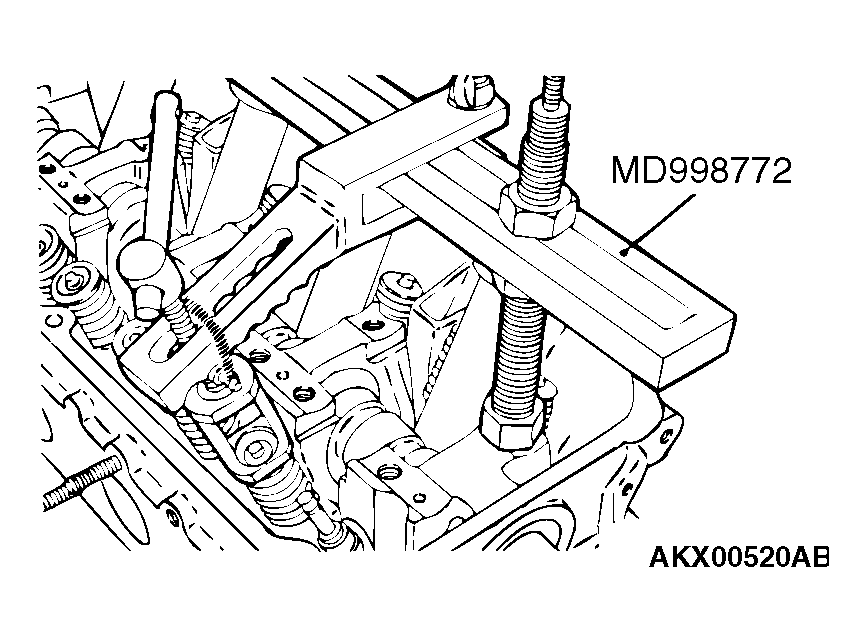

Fig 3: Identifying Special Tool MD998772
Courtesy of DAIMLERCHRYSLER CORPORATION
