>> A << Valve Stem Seal Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The special tool must be used to install the valve stem seal. Improper installation could result in oil leaking past the valve guide.
  1. Install the valve spring seat.
  2. Using special tool MD998774, install a new valve stem seal.

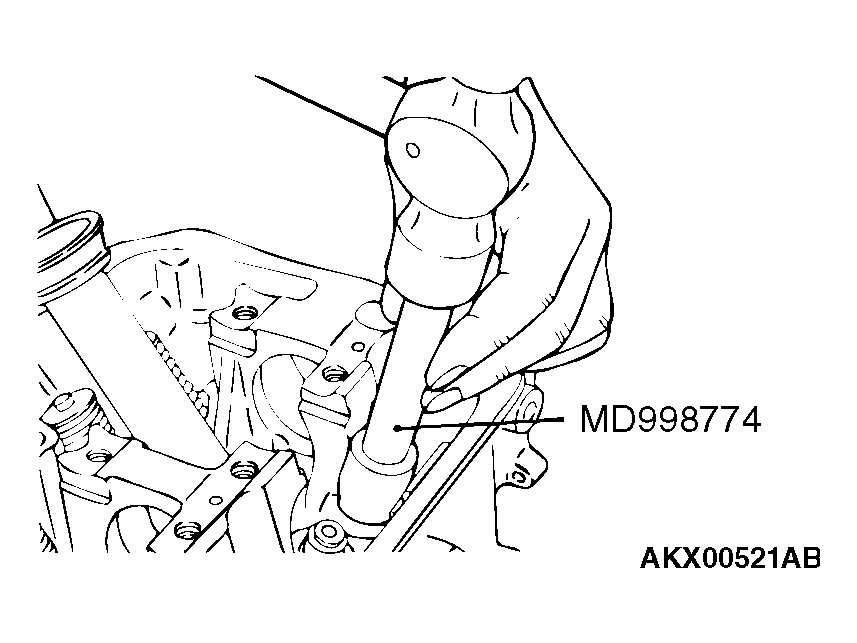

    Fig 1: Installing Valve Stem Seal Using Special Tool
    G04538230Courtesy of DAIMLERCHRYSLER CORPORATION
