Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Pre-removal and Post-installation Operation

Quarter Trim Upper Removal and Installation (Refer to REMOVAL AND INSTALLATION .)
Rear Pillar Outer Panel Removal and Installation (Refer to REAR PILLAR OUTER PANEL .)
Drip Line Weatherstrip Holder Removal and Installation (Refer to INSPECTION .)

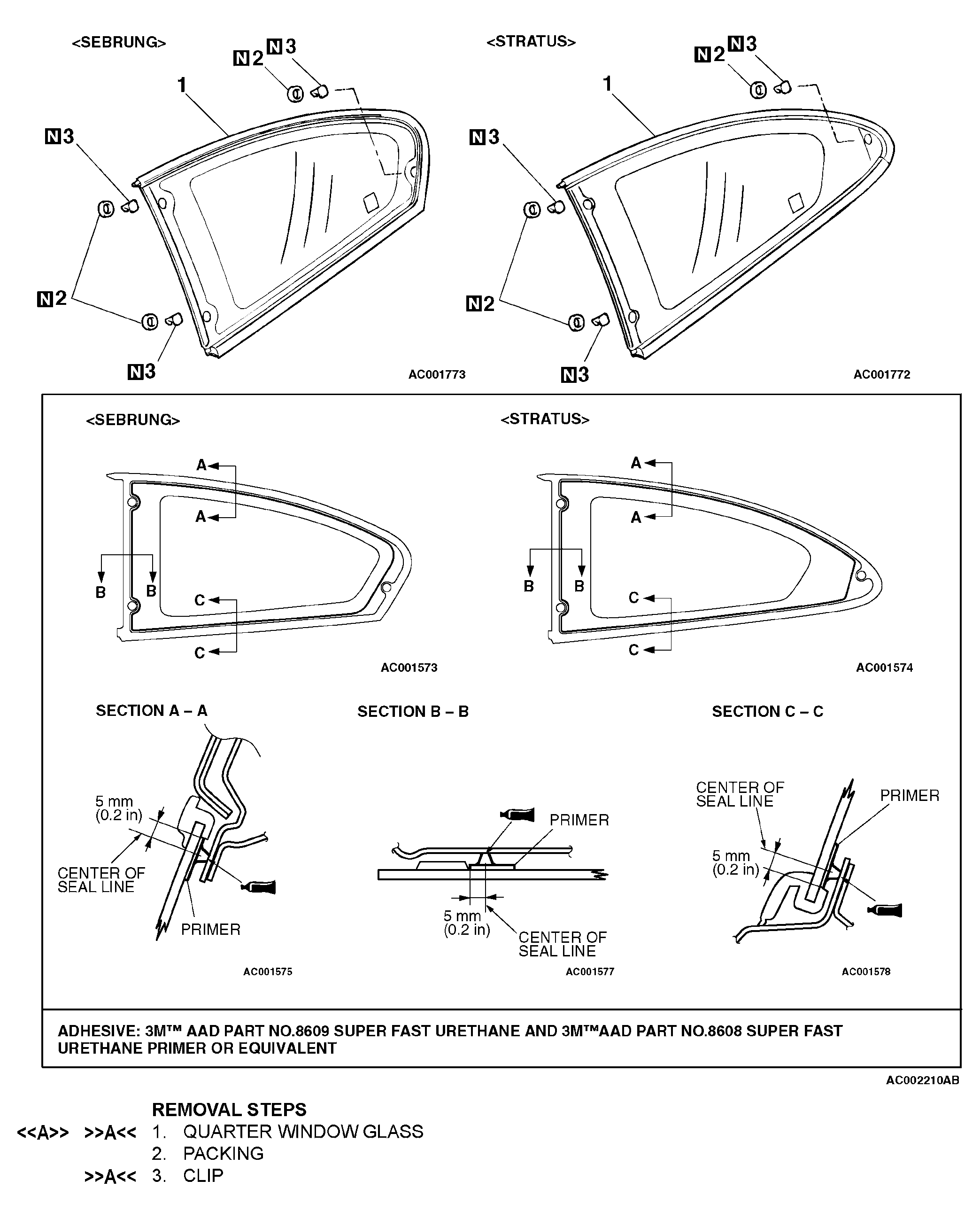

Fig 1: Removing/Installing Quarter Window Glass

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tool:

MB990449: Window Molding Remover
