INSPECTION PROCEDURE 4: The "THEFT-ALARM" Indicator Light does not Illuminate.: Diagnosis

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Required Special Tools:

  1. STEP 1. Check the "THEFT-ALARM" indicator light circuit of immobilizer-ECU connector C-128.
    1. Disconnect the immobilizer-ECU connector C-128 and measure at the harness side.

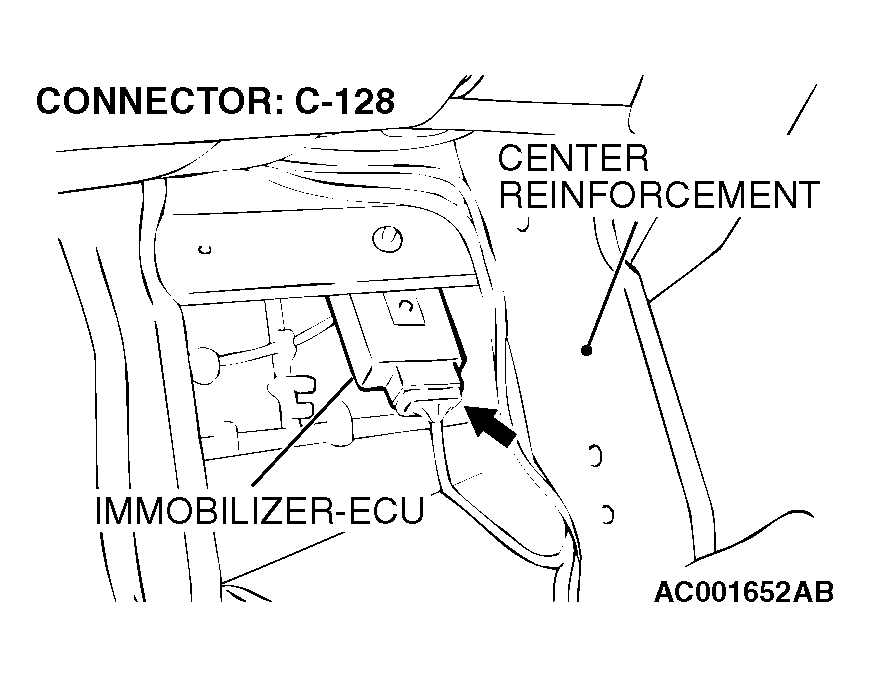

      Fig 1: Identifying Connector C-128
      G04538855Courtesy of DAIMLERCHRYSLER CORPORATION
    2. Connect terminal 9 to the ground.
    3. Turn the ignition switch to the "ON" position.

    Q: Does only the "THEFT-ALARM" indicator light illuminate? (other indicator lights are in good condition)

    YES  : Replace the immobilizer-ECU. Then register the password (secret code) and encrypted code HOW TO REGISTER ENCRYPTED CODE  .

    NO:  Go to Step 2.

    Fig 2: Connecting Terminal 9 To Ground
    G04538856Courtesy of DAIMLERCHRYSLER CORPORATION
  2. STEP 2. Check the "THEFT-ALARM" indicator light.
    1. Remove the combination meter and remove the "THEFT-ALARM" indicator light bulb.
    2. Check the bulb.

    Q: Is the "THEFT-ALARM" indicator light damaged?

    YES  : Replace it.

    NO:  Go to Step 3.

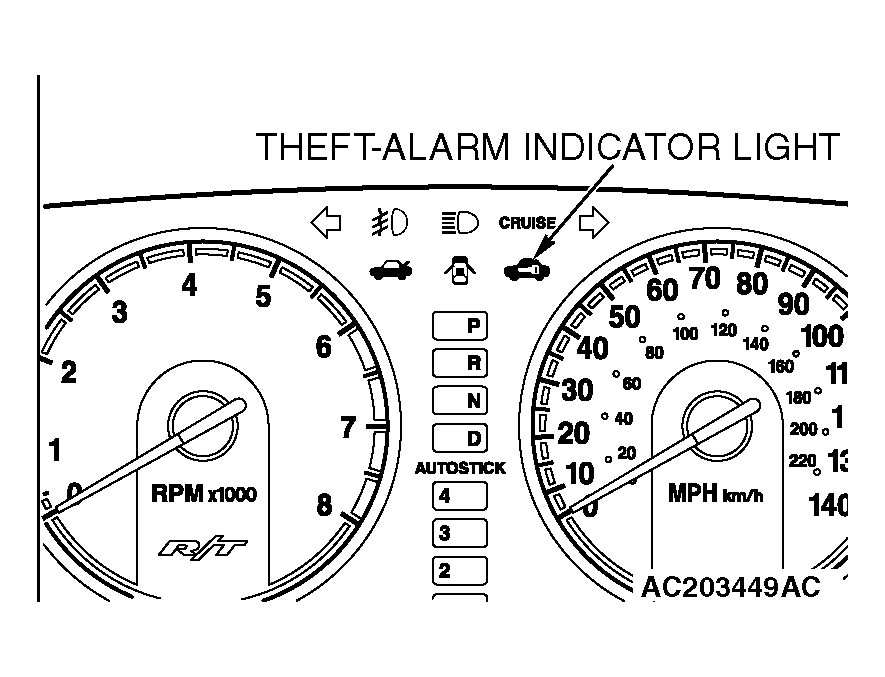

    Fig 3: Identifying Theft-Alarm Indicator Light
    G04538857Courtesy of DAIMLERCHRYSLER CORPORATION
  3. STEP 3. Check the combination meter power supply circuit.
    1. Disconnect the combination meter connector C-101.
    2. Turn the ignition switch to the "ON" position.

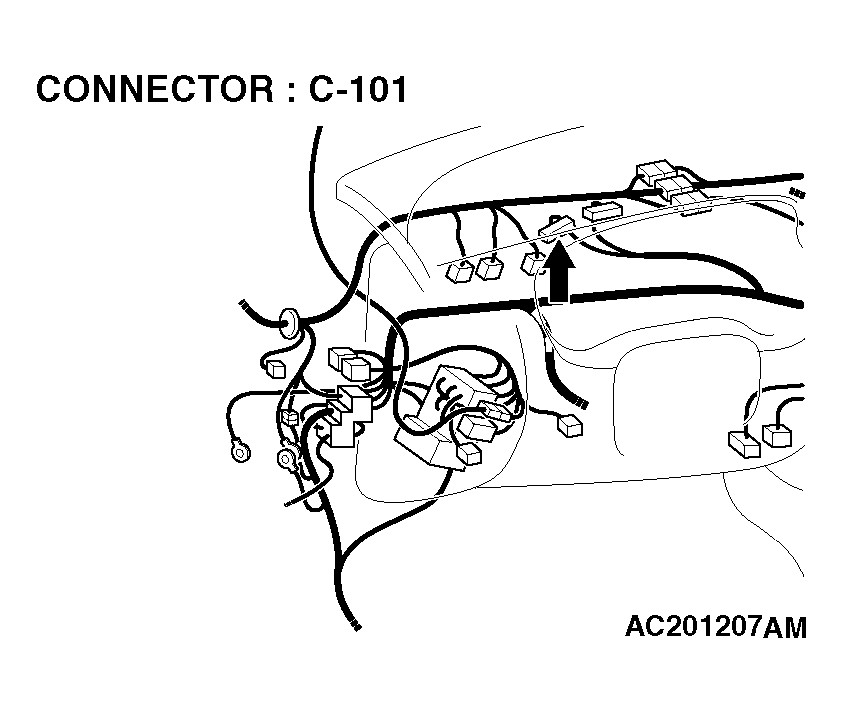

      Fig 4: Identifying Connector C-101
      G04538858Courtesy of DAIMLERCHRYSLER CORPORATION
    3. Measure the voltage between terminal 1 and ground.

    Q: Is the voltage approximately 12 volts (battery positive voltage)?

    YES  : Go to  Step 6.

    NO:  Go to Step 4.

    Fig 5: Measuring Voltage Between Terminal 1 And Ground
    G04538859Courtesy of DAIMLERCHRYSLER CORPORATION
  4. STEP 4. Check the combination meter connector C-101 for damage.

    Q: Is the combination meter connector C-101 damaged?

    YES  : Repair or replace the connector. Refer to , HARNESS CONNECTOR INSPECTION . Confirm that scan tool MB991502 communicates normally.

    NO:  Go to Step 5.

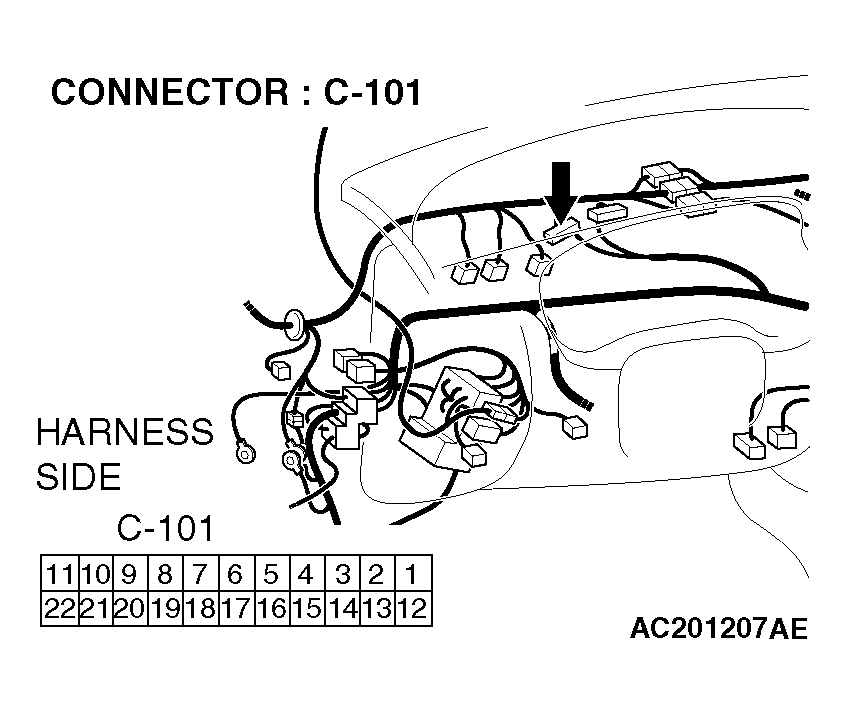

    Fig 6: Identifying Combination Meter Connector C-101
    G04538860Courtesy of DAIMLERCHRYSLER CORPORATION
  5. STEP 5. Check the wiring harness between combination meter connector C-101 (terminal 1) and the battery.

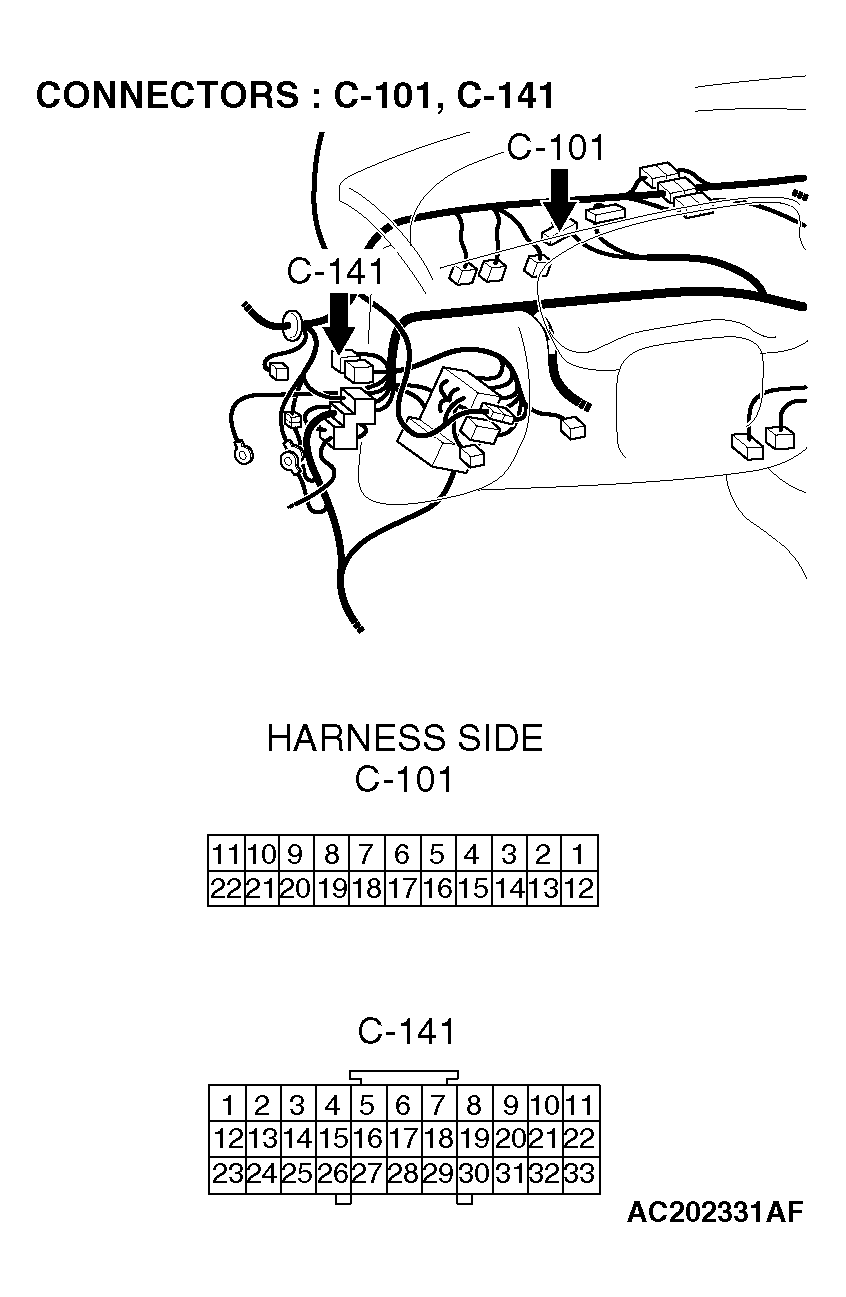

    Fig 7: Identifying Connectors C-101, C-141
    G04538861Courtesy of DAIMLERCHRYSLER CORPORATION
    NOTE: Also check joint connector C-141 and C-209. If junction block connector C-141 or C-209 are damaged, repair or replace the connectors. Refer to , HARNESS CONNECTOR INSPECTION .

    Q: Is the wiring harness between combination meter connector C-101 (terminal 1) and the battery damaged?

    YES  : Repair the wiring harness. Refer to , HARNESS CONNECTOR INSPECTION .

    NO:  Repair the combination meter (printed-circuit board) (Refer to P.8E-38). Then Go to  Step 8.

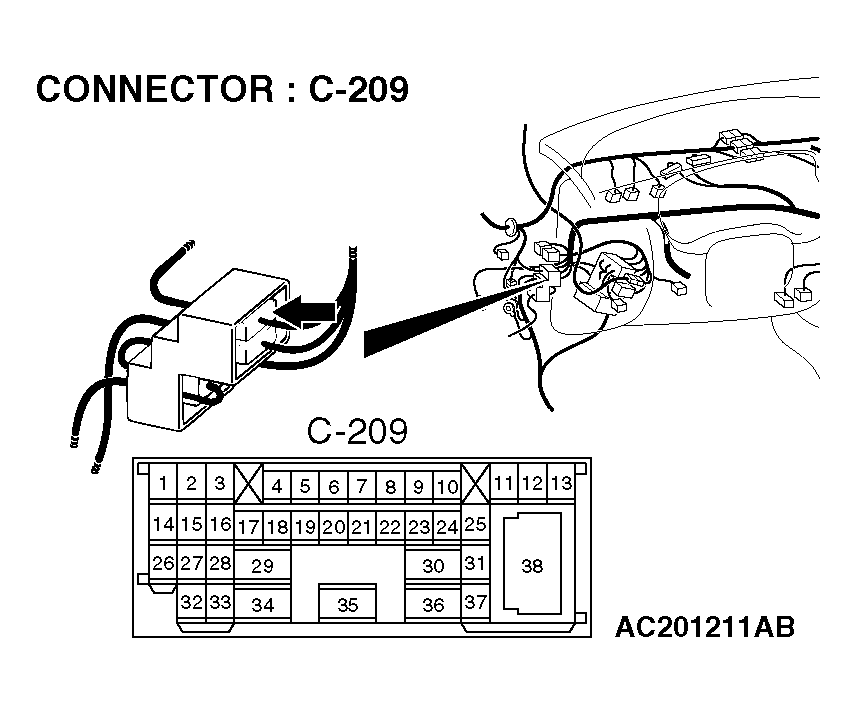

    Fig 8: Identifying Connector C-209
    G04538862Courtesy of DAIMLERCHRYSLER CORPORATION
  6. STEP 6. Check immobilizer-ECU connector C-128 and combination meter connector C-102 for damage.

    Q: Are immobilizer-ECU connector C-128 and combination meter connector C-102 in good condition?

    YES  : Go to Step 7.

    NO:  Repair or replace the connector(s). Refer to , HARNESS CONNECTOR INSPECTION . Confirm that scan tool MB991502 communicates normally.

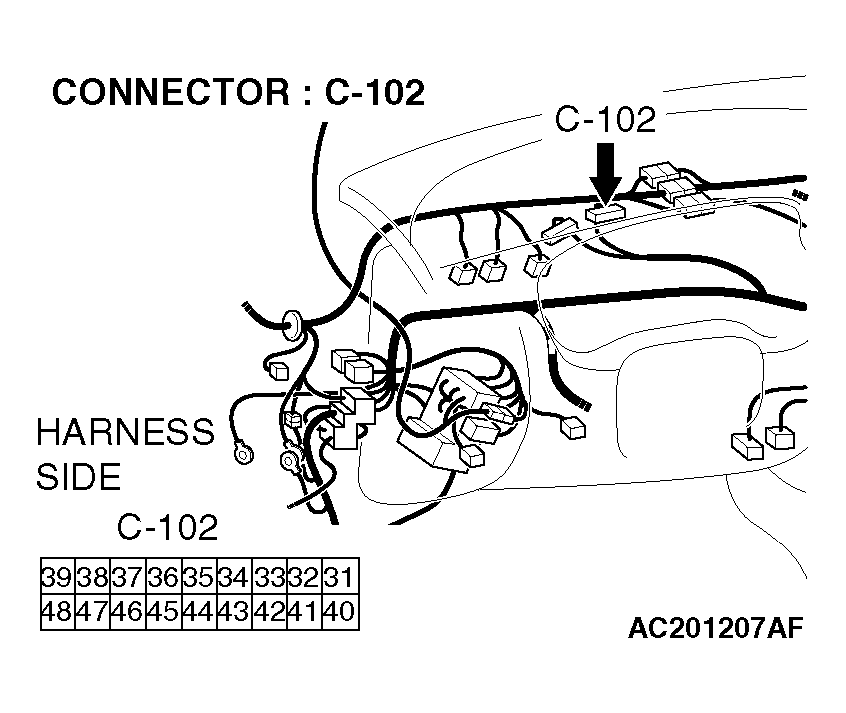

    Fig 9: Identifying Connector C-102
    G04538863Courtesy of DAIMLERCHRYSLER CORPORATION

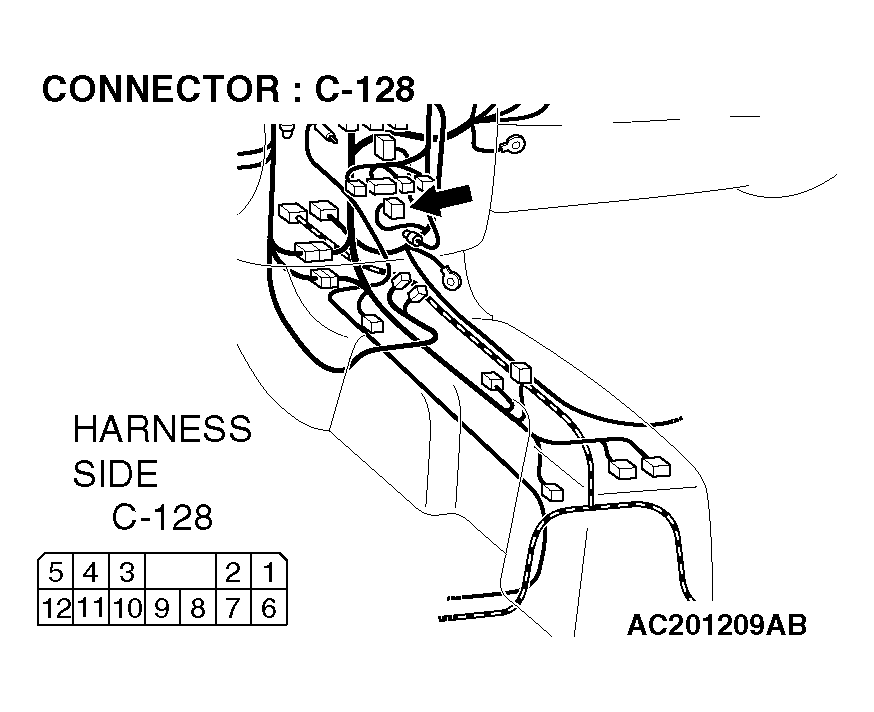

    Fig 10: Identifying Connector C-128
    G04538864Courtesy of DAIMLERCHRYSLER CORPORATION
  7. STEP 7. Check the wiring harness between immobilizer-ECU connector C-128 (terminal 9) and combination meter connector C-102 (terminal 47).

    Q: Is the wiring harness between immobilizer-ECU connector C-128 (terminal 9) and combination meter connector C-102 (terminal 47) in good condition?

    YES  : Repair the combination meter (printed-circuit board) (Refer to COMBINATION METERS ASSEMBLY ). Then go to Step 8.

    NO:  Repair the wiring harness. Refer to , HARNESS CONNECTOR INSPECTION .

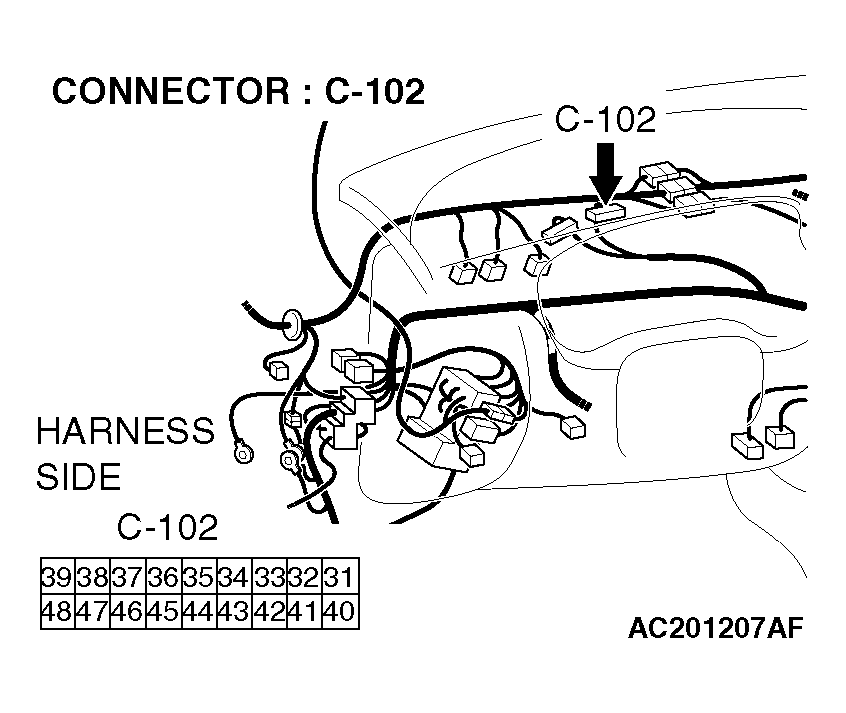

    Fig 11: Identifying Connector C-102
    G04538865Courtesy of DAIMLERCHRYSLER CORPORATION

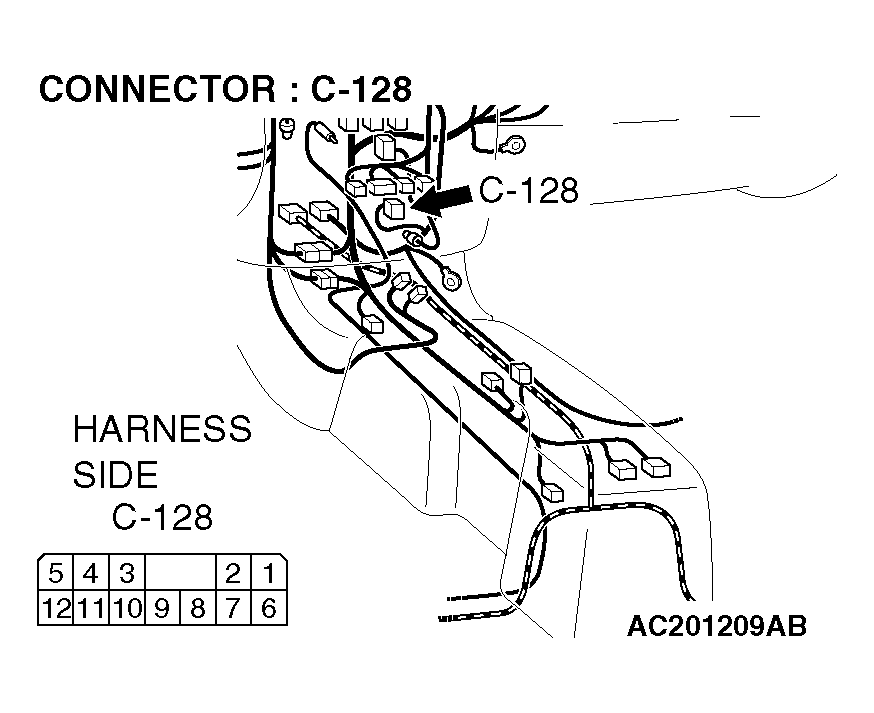

    Fig 12: Identifying Connector C-128
    G04538866Courtesy of DAIMLERCHRYSLER CORPORATION
  8. STEP 8. Retest the system.

    Q: Is a malfunction eliminated?

    YES  : The procedure is complete. (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS .)

    NO:  Go to  step 1.
