Door Inside Handle Play Check And Adjustment

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Check that the door inside handle play is within the standard value range.

    Standard value (A): 3.2 mm (0.13 inch)

  2. If the door inside handle play is outside the standard value range, remove the door trim. (Refer to DOOR TRIM .)
  3. Loosen the inside handle mounting screws, and then move the inside handle back and forth to adjust the play.

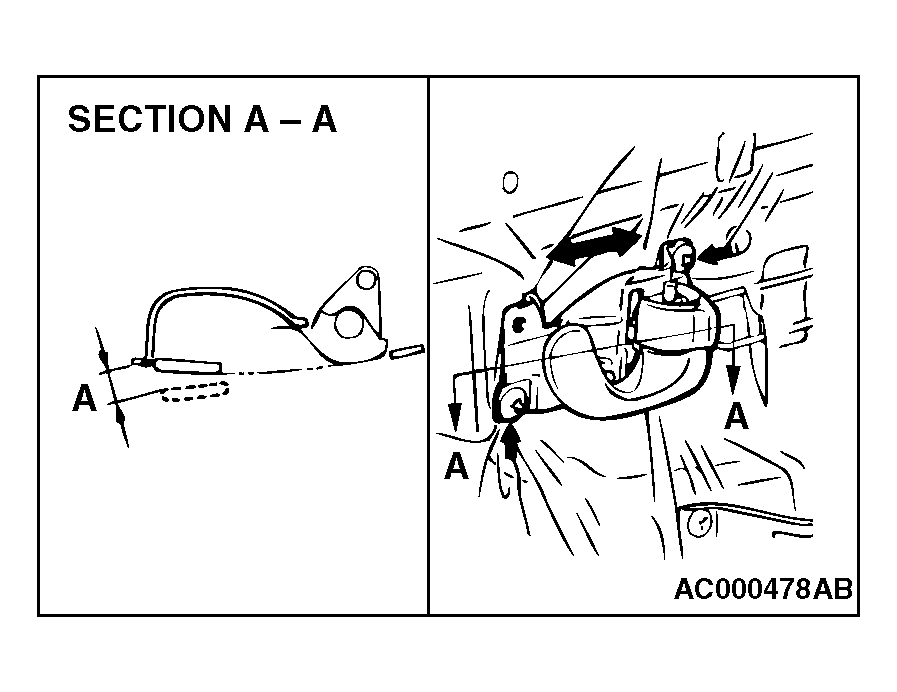

    Fig 1: Checking Door Inside Handle Play
    G04538814Courtesy of DAIMLERCHRYSLER CORPORATION
