Door Lock Actuator Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

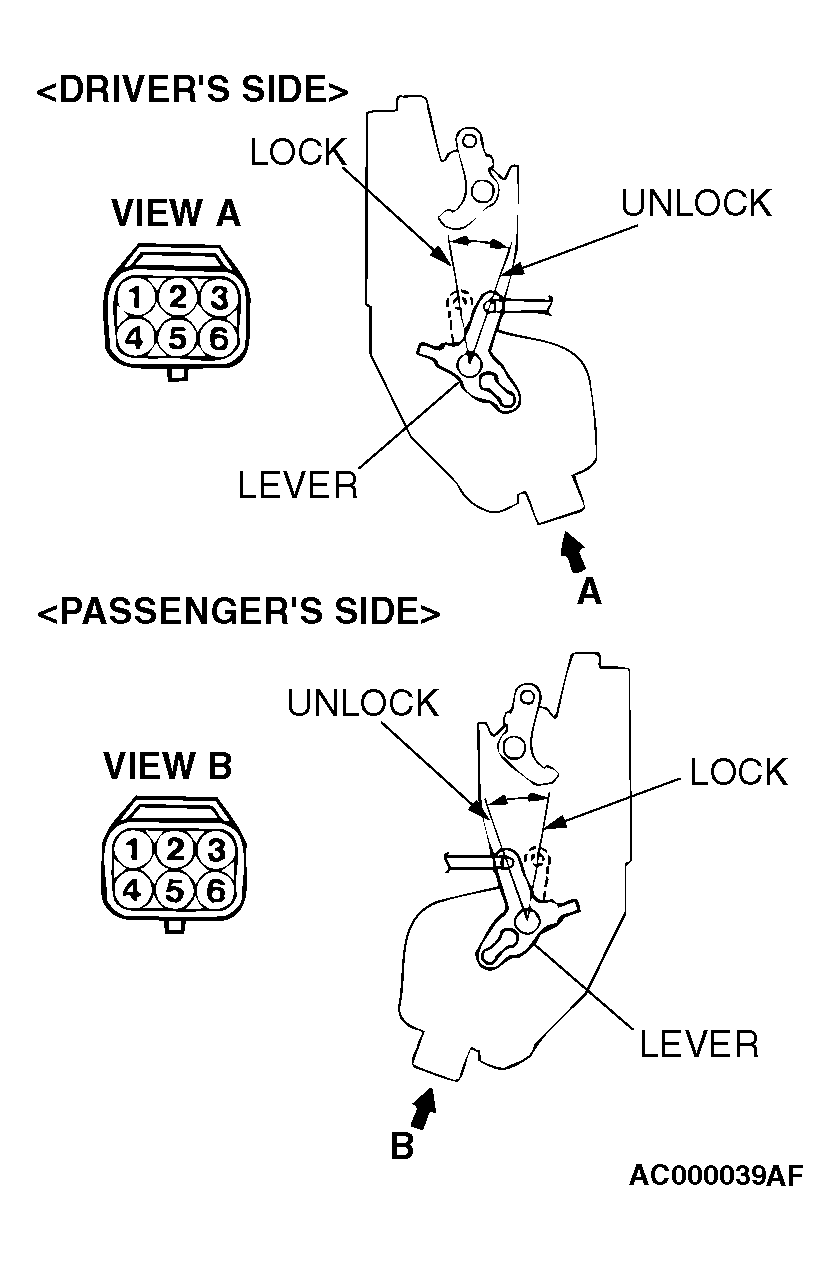

Fig 1: Checking Door Lock Actuator
G04538818Courtesy of DAIMLERCHRYSLER CORPORATION
ACTUATOR OPERATION CHECK < DRIVER'S SIDE >

LEVER POSITION BATTERY CONNECTION LEVER OPERATION
At the "LOCK" position
  • Connect terminal No. 4 to the negative battery terminal.
  • Connect terminal No. 6 to the positive battery terminal.
 The lever moves from the "LOCK" position to the "UNLOCK" position.
At the "UNLOCK" position
  • Connect terminal No. 4 to the positive battery terminal.
  • Connect terminal No. 6 to the negative battery terminal.
 The lever moves from the "UNLOCK" position to the "LOCK" position.
ACTUATOR SWITCH CHECK < DRIVER'S SIDE >

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
LOCK 1 - 3 Less than 2 ohms
UNLOCK 1 - 2 Less than 2 ohms
ACTUATOR OPERATION CHECK < PASSENGER'S SIDE >

LEVER POSITION BATTERY CONNECTION LEVER OPERATION
At the "LOCK" position
  • Connect terminal No. 4 to the positive battery terminal.
  • Connect terminal No. 6 to the negative battery terminal.
 The lever moves from the "LOCK" position to the "UNLOCK" position.
At the "UNLOCK" position
  • Connect terminal No. 4 to the negative battery terminal.
  • Connect terminal No. 6 to the positive battery terminal.
 The lever moves from the "UNLOCK" position to the "LOCK" position.
ACTUATOR SWITCH CHECK < PASSENGER'S SIDE >

SWITCH POSITION TESTER CONNECTION SPECIFIED CONDITION
LOCK 2 - 3 Open circuit
UNLOCK Less than 2 ohms
