Fan Control Relay Continuity Check
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

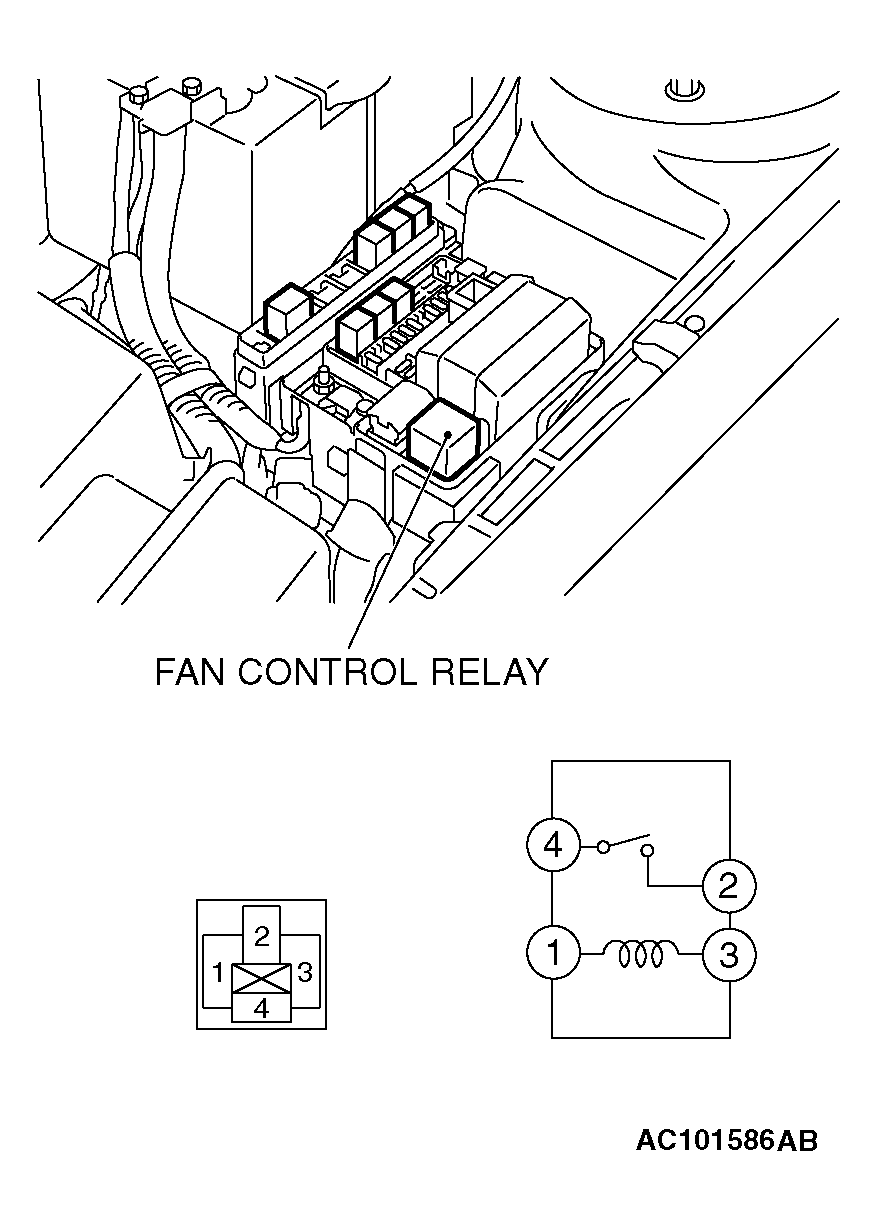

FAN CONTROL RELAY CONTINUITY CHECK
| BATTERY VOLTAGE |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Not applied |
2 - 4 |
Open circuit |
- Connect terminal 1 to the positive battery terminal
- Connect terminal 3 to the negative battery terminal
|
2 - 4 |
Less than 2 ohms |
Courtesy of DAIMLERCHRYSLER CORPORATION
