Blower Relay Continuity Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
BLOWER RELAY CONTINUITY CHECK

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not applied 4 - 5 Open circuit
  • Connect terminal 1 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 4 - 5 Less than 2 ohms

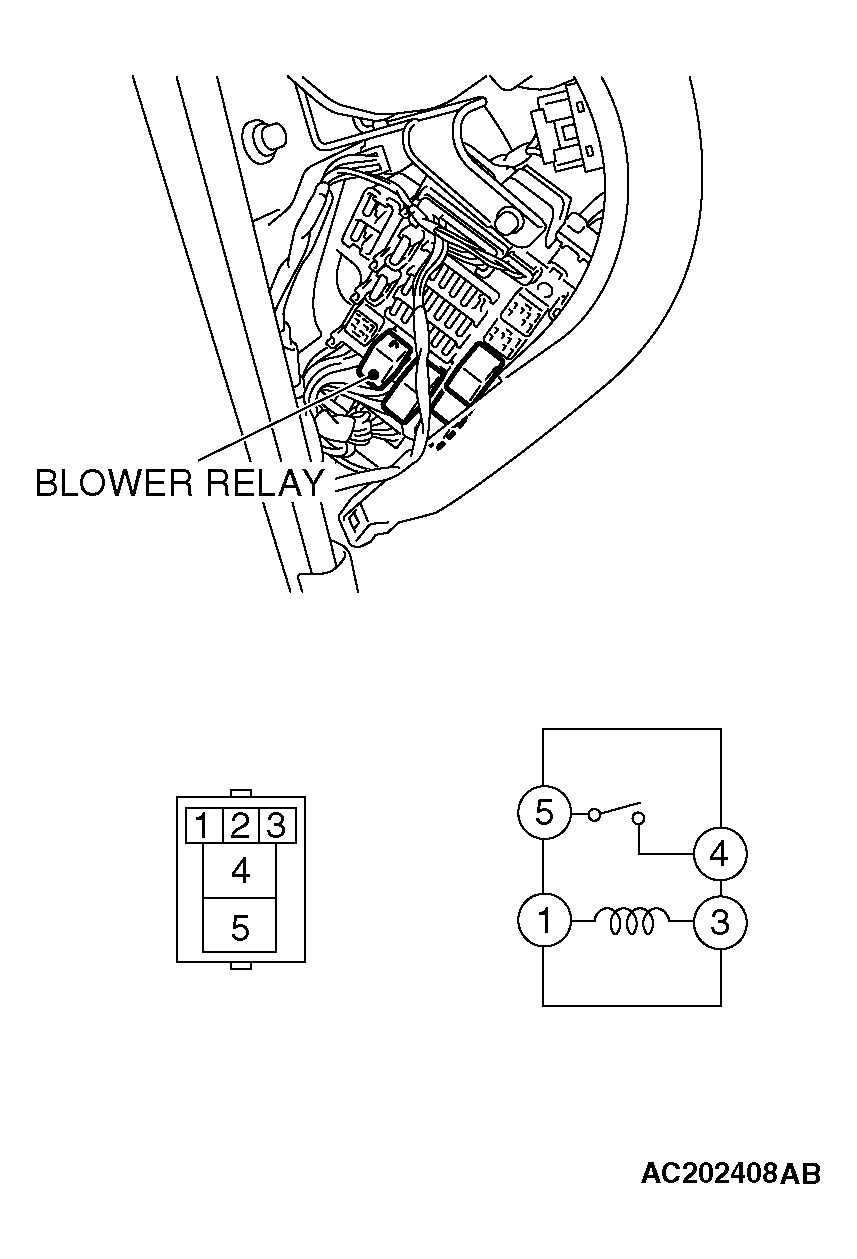

Fig 1: Checking Blower Relay Continuity
G04538740Courtesy of DAIMLERCHRYSLER CORPORATION
