A/C Compressor Clutch Relay Continuity Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
A/C COMPRESSOR CLUTCH RELAY CONTINUITY CHECK

BATTERY VOLTAGE TESTER CONNECTION SPECIFIED CONDITION
Not applied 1 - 4 Open circuit
  • Connect terminal 2 to the positive battery terminal
  • Connect terminal 3 to the negative battery terminal
 1 - 4 Less than 2 ohms

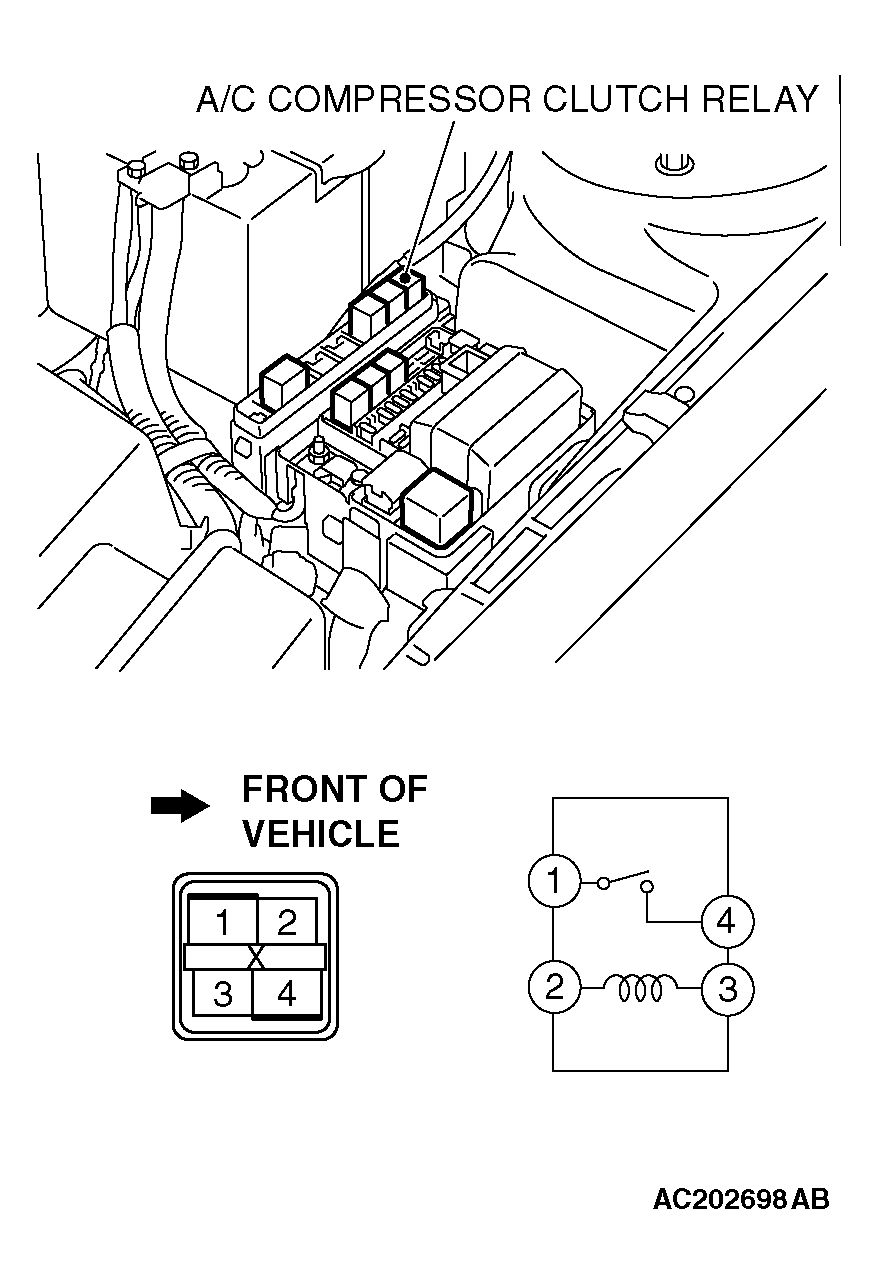

Fig 1: Checking A/C Compressor Clutch Relay
G04538741Courtesy of DAIMLERCHRYSLER CORPORATION
