INSPECTION PROCEDURE 2: When the Air Outlet Changeover Control Knob is Moved to Defroster or Defroster/Foot Position, the A/C or the Inside/Outside Air Changeover Damper Motor does not Operate.: Diagnosis
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

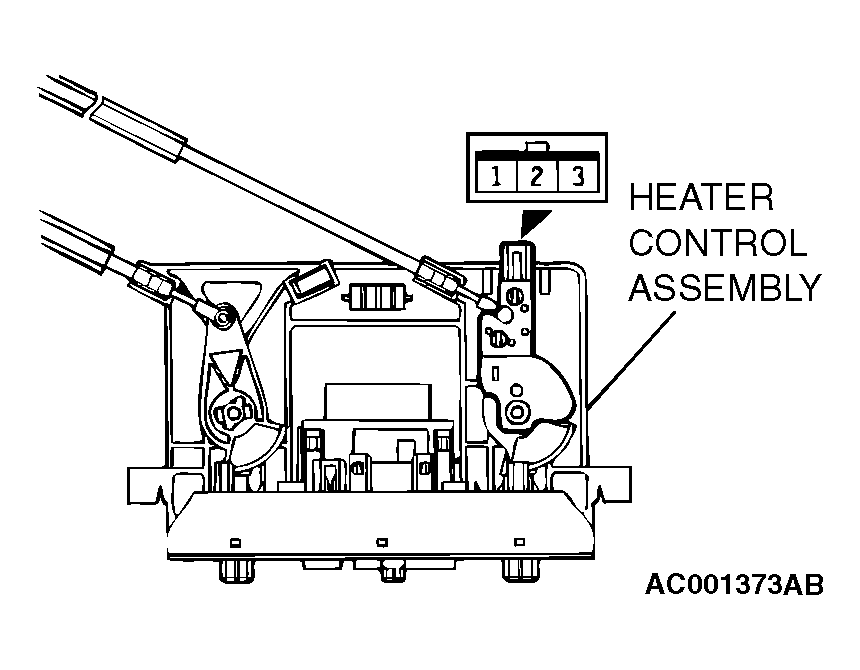

- STEP 1. Check the defroster switch continuity.
Follow the table below to check the defroster switch for continuity.
DEFROSTER SWITCH CHECKAIR OUTLET CHANGEOVER CONTROL KNOB POSITION TESTER CONNECTION SPECIFIED CONDITION At the "DEFROSTER" or "DEFROSTER/FOOT" position 2 - 3 Less than 2 ohms 1 - 3 Open circuit At the other positions 1 - 3 Less than 2 ohms 2 - 3 Open circuit Q: Is the defroster switch in good condition?
YES : Go to Step 2.
NO: Replace the defroster switch. Then go to Step 2.
- STEP 2. Check each A/C part.
Refer to INSPECTION PROCEDURE 1 .
Q: Is the A/C operating properly?
YES : The procedure is complete. (If no malfunctions are found in all steps, an intermittent malfunction is suspected. Refer to HOW TO COPE WITH INTERMITTENT MALFUNCTIONS .)
NO: Go to Step 1.
