<< B >> Air Mix Damper Lever Cable, Air Outlet Changeover Damper Link Cable Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Insert a flat-tipped screwdriver into the control base clip from inner side, and then remove the cable by lifting the claw part of the clip.

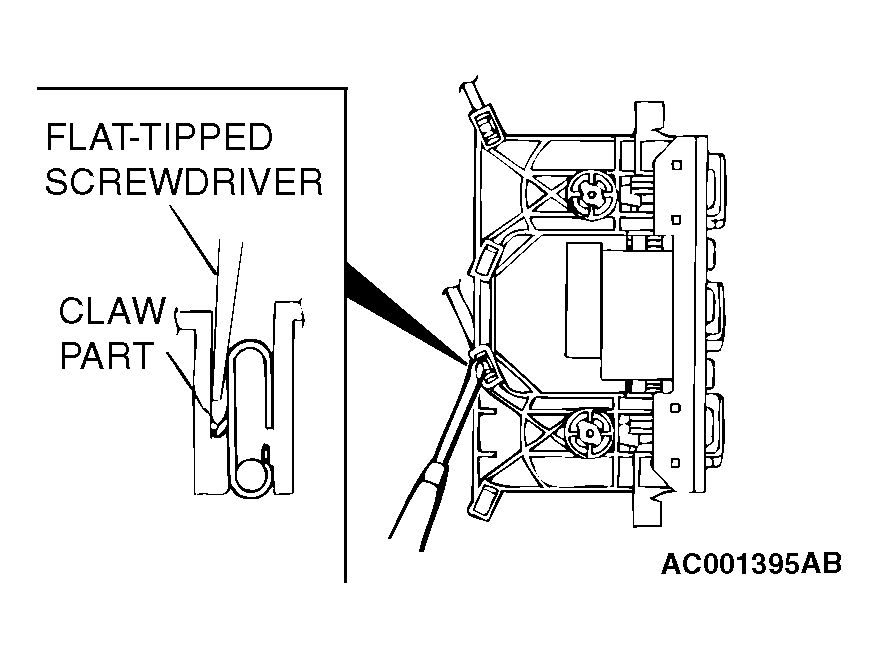

Fig 1: Inserting Flat-Tipped Screwdriver Into Control Base Clip From Inner Side

Courtesy of DAIMLERCHRYSLER CORPORATION
