Revolution Pick-up Sensor Check
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

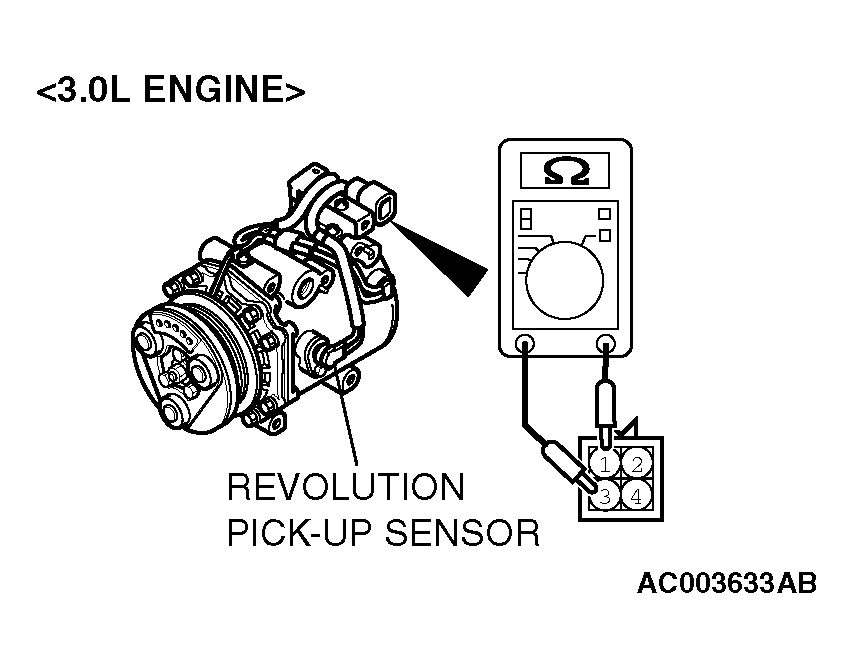

Measure the resistance between terminals 1 and 3. Check that the measured value is at the standard value.
Standard value: 405 +/- 35 Ω when the ambient air temperature is 20°C (68°F)
Courtesy of DAIMLERCHRYSLER CORPORATION
