Refrigerant Temperature Switch Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

When the A/C is off, check that there is continuity between the refrigerant-temperature switch terminals. If not, replace the switch.

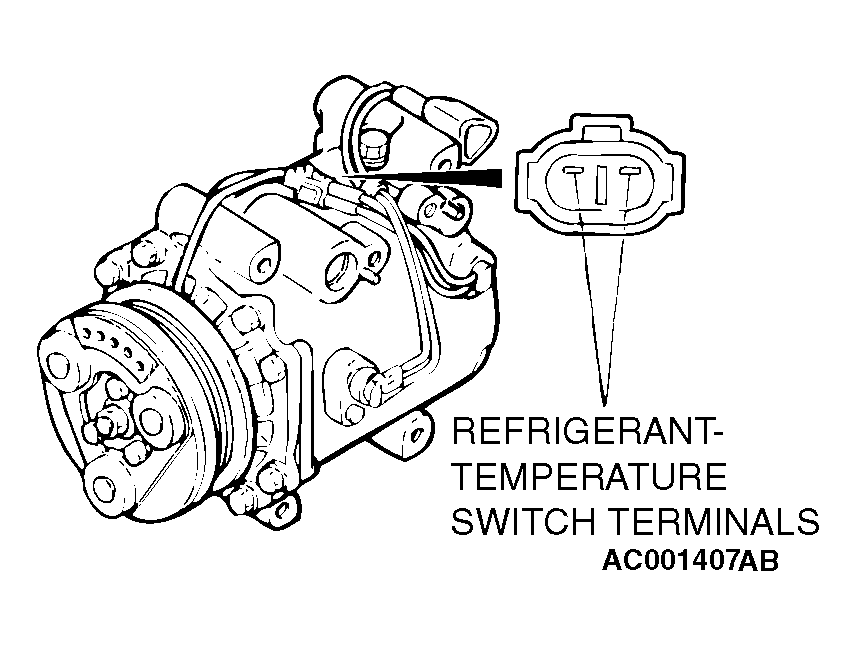

Fig 1: Checking Refrigerant Temperature Switch
G04538760Courtesy of DAIMLERCHRYSLER CORPORATION
