Inside/Outside Air Changeover Damper Motor Check

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Cut off the battery voltage when the damper is in the inside/outside air position.

BATTERY VOLTAGE SPECIFICATION

BATTERY VOLTAGE	LEVER POSITION
Connect terminal 1 to the positive battery terminal Connect terminal 7 to the negative battery terminal	Move to the outside air position
Connect terminal 1 to the positive battery terminal Connect terminal 5 to the negative battery terminal	Move to the inside air position

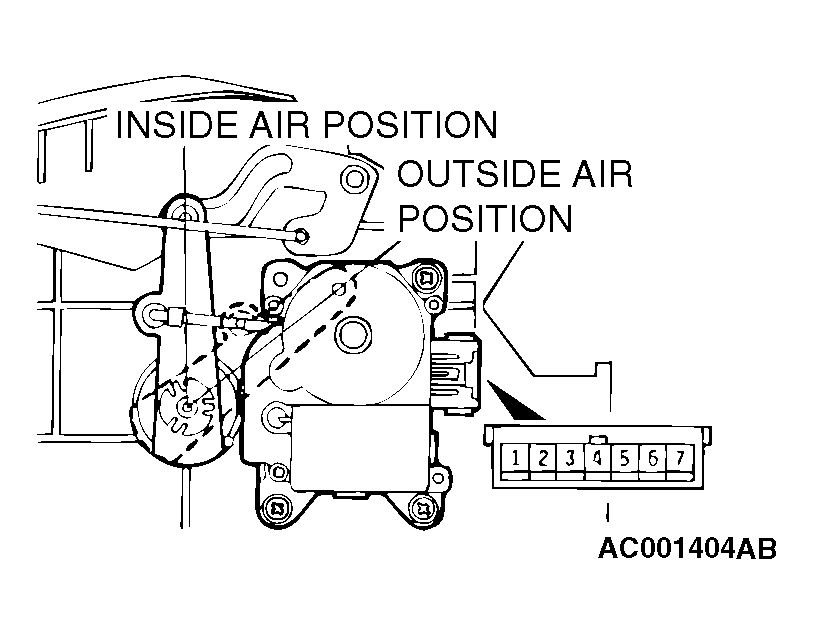

Fig 1: Connecting Terminal To Negative Battery Terminal

Courtesy of DAIMLERCHRYSLER CORPORATION
