Replacement Of Headlight Bulb

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the connector.
  2. Remove the sealing cover.

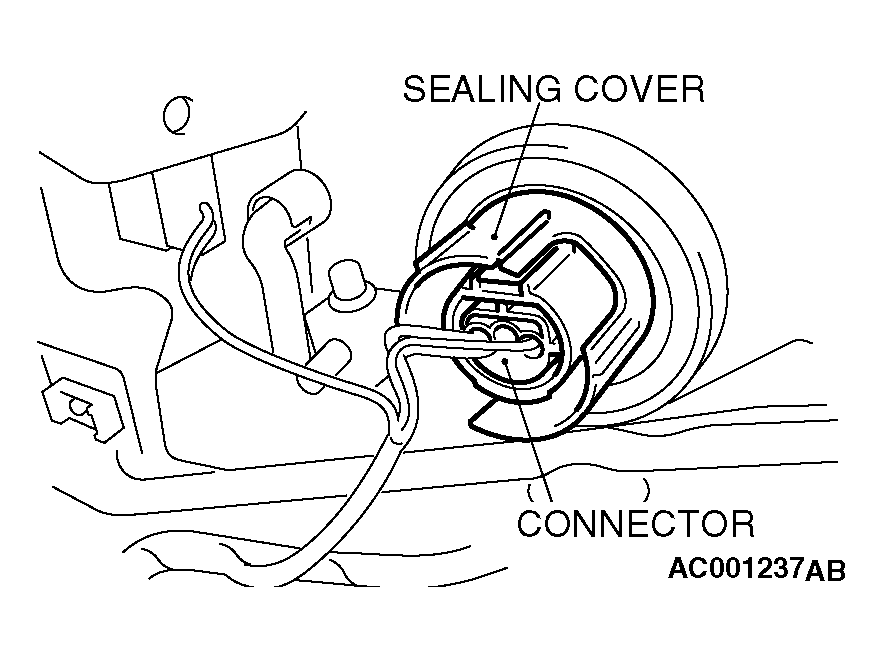

    Fig 1: Removing Sealing Cover
    G04539499Courtesy of DAIMLERCHRYSLER CORPORATION
    CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.
  3. Remove the headlight bulb
  4. Install the sealing cover securely after the bulb replacement, or the lens will be out of focus, or water will get inside the light unit.
    Fig 2: Installing Sealing Cover Securely After Bulb Replacement
    G04539500Courtesy of DAIMLERCHRYSLER CORPORATION
