Replacement Of Front Side Marker Light Bulb

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the horn (LH side only).

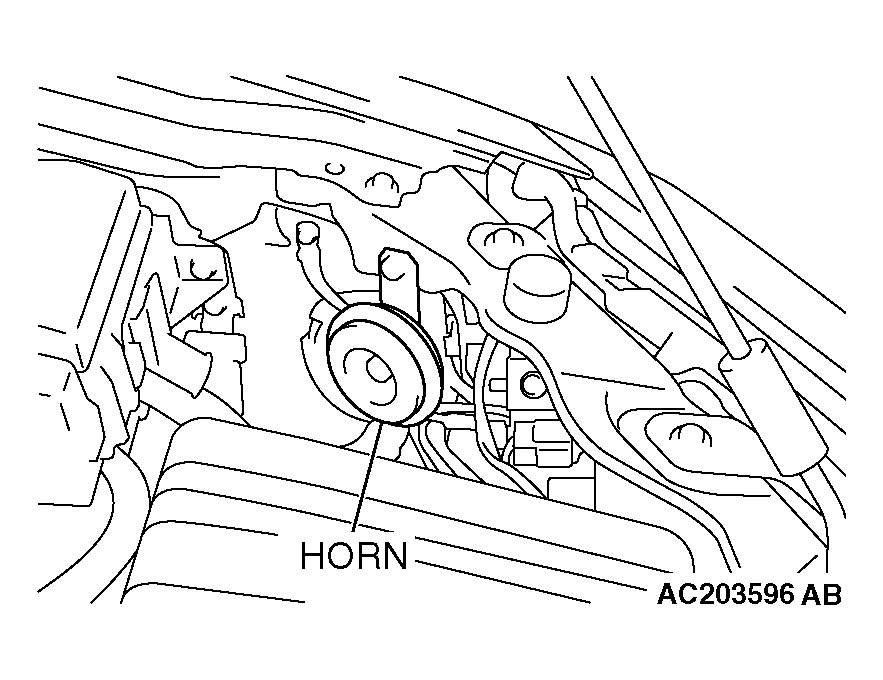

    Fig 1: Removing Horn (LH Side Only)
    G04539494Courtesy of DAIMLERCHRYSLER CORPORATION
    CAUTION: Do not touch the surface of the bulb with hands or dirty gloves as the bulb may pop after a short time. If the surface does become dirty, clean it with alcohol or thinner, and let it dry thoroughly before installing.
  2. Turn the socket counterclockwise and pull it out and remove the front turn signal light bulb.

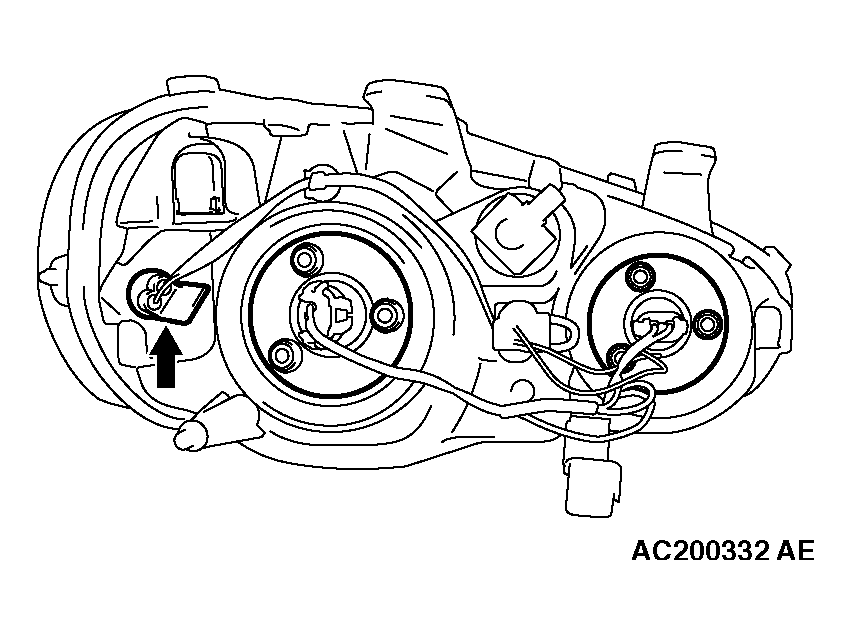

    Fig 2: Removing Front Turn Signal Light Bulb
    G04539495Courtesy of DAIMLERCHRYSLER CORPORATION
