Headlight Aiming Adjustment

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. The low beam headlight will project on the screen upper edge of the beam (cut-off).
  2. Turn the adjusting screws to achieve the specified low-beam cut-off location on the aiming screen.

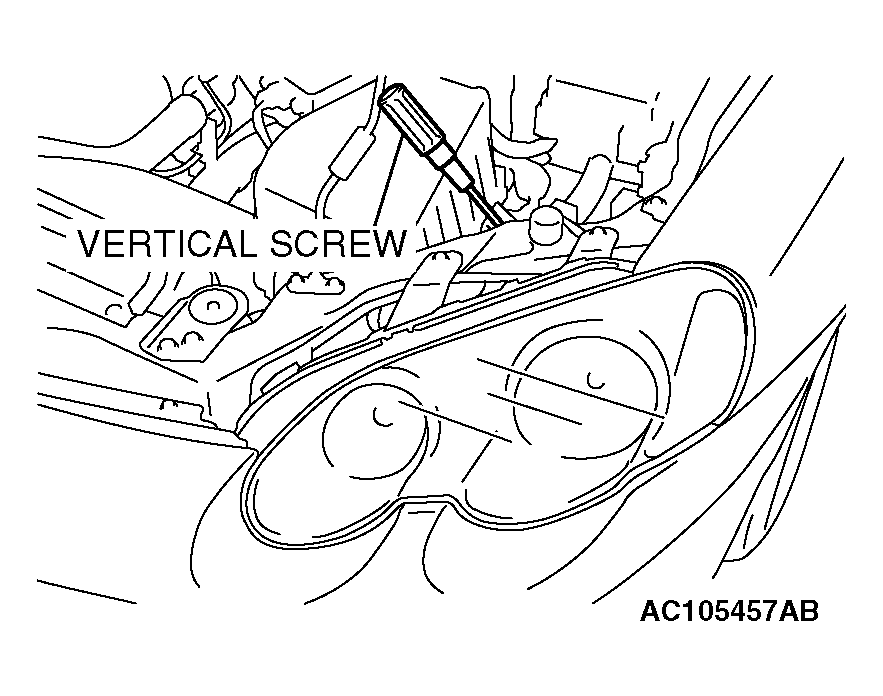

    Fig 1: Locating Adjusting Screw
    G04539489Courtesy of DAIMLERCHRYSLER CORPORATION

    Standard value:

    (Vertical direction) Horizontal center line +/- 50 mm (+/- 2.0 inches)

  3. When adjusting headlight, disconnect the other headlight harness.
    CAUTION: Do not cover a headlight for more than three minutes to prevent the plastic headlight lens from deformation.
  4. There is no horizontal aim adjustment. Horizontal aim is preset and does not require adjustment. High-beam pattern should be correct when the low-beams are adjusted properly.
    Fig 2: Identifying Low-Beam Cut-Off
    G04539490Courtesy of DAIMLERCHRYSLER CORPORATION
