Fog Light Adjustment
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

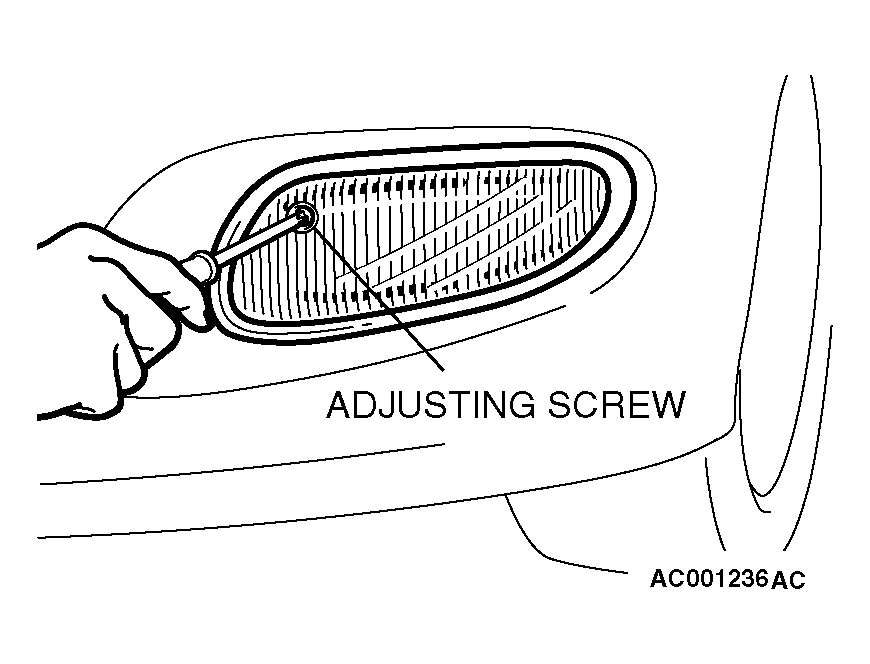

- Check if the beam shining onto the screen is at the standard value.
Standard value:
(Vertical direction): Top of the hot zone should be 101 mm (4.0 inches) (0.76°) downward from the height of the fog light center.
Limit:
(Vertical direction): Top of the hot zone should be 152 mm (15.24 cm) (1.14°) in maximum downward from the height of the fog light center.
NOTE:
The horizontal direction is non-adjustable. If deviation of the light beam axis exceeds the standard value, check that the mounting location or some other points are not faulty.
