<< A >> Wiper Motor And Link Assembly Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the five mounting bolts of the wiper motor and link assembly and disconnect the connector.
  2. To protect the windshield, apply duct tape to the entire circumference of the glass near the wiper motor and link assembly installation position.
  3. Use a flat-tipped screwdriver to disengage the driver's side link from the center crank arm.
    CAUTION: Be careful not to damage the windshield glass when removing the wiper motor and link assembly.
  4. Remove the wiper motor and link assembly from the vehicle body (the cowl) while being careful not to scratch the windshield glass.

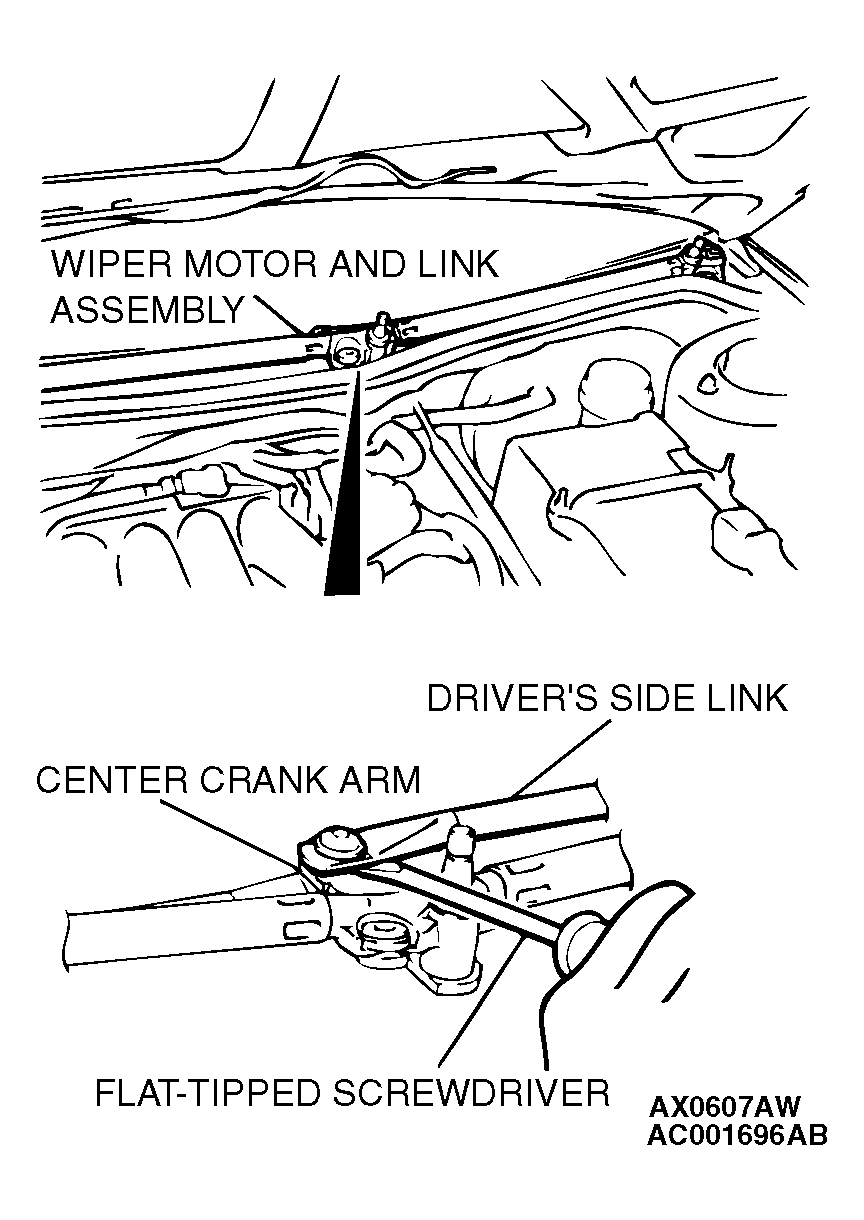

    Fig 1: Removing Wiper Motor And Link Assembly From Vehicle Body
    G04539476Courtesy of DAIMLERCHRYSLER CORPORATION
