Removal And Installation: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: For removal and installation of the wiper and washer switch, refer to COLUMN SWITCH .

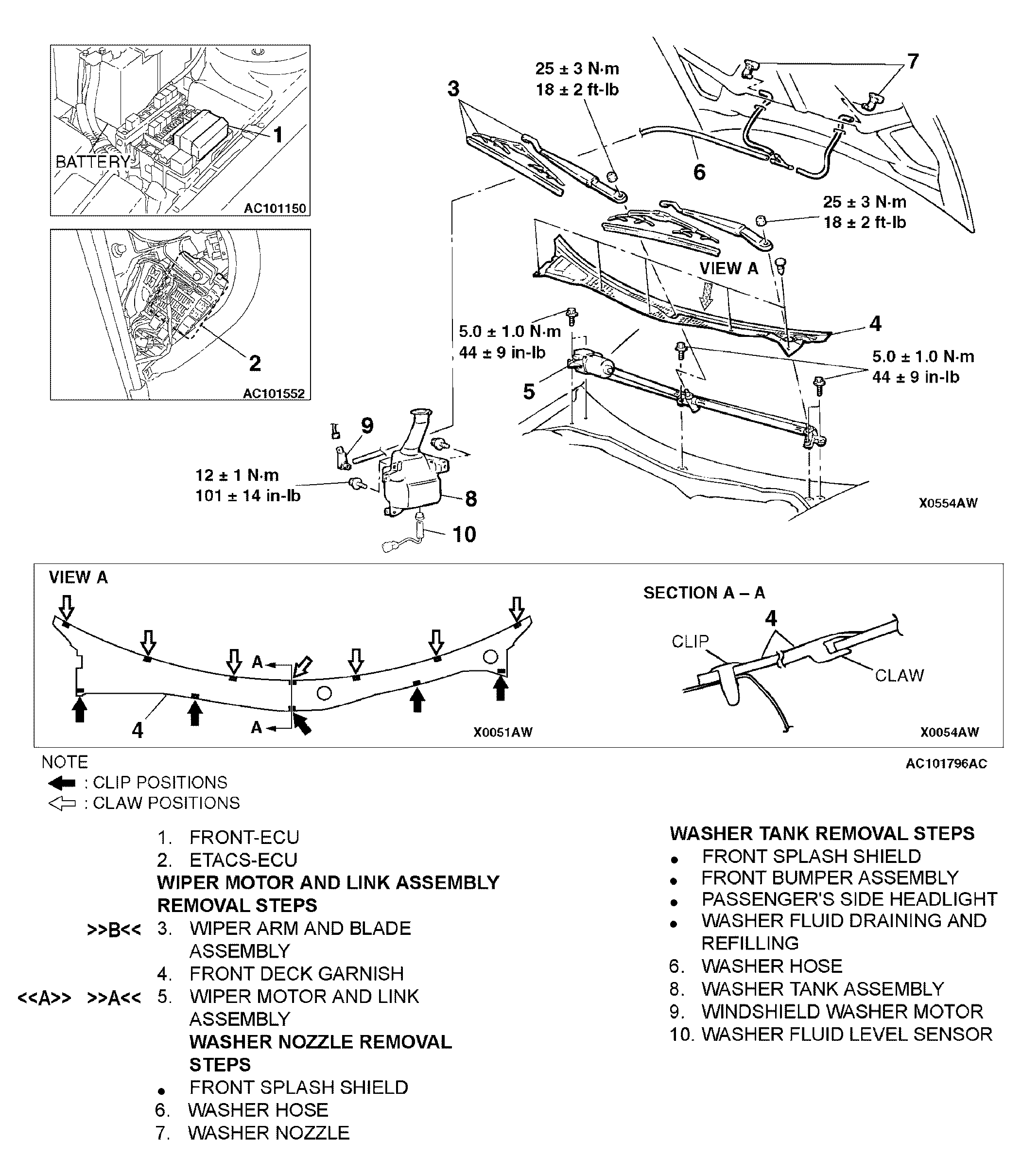

Fig 1: Identifying Windshield Wiper And Washer
G04539475Courtesy of DAIMLERCHRYSLER CORPORATION
