>> A << Wiper Motor And Link Assembly Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Be careful not to scratch the windshield glass when installing the wiper motor and link assembly.

Install the wiper motor and link assembly to the vehicle body (the cowl) while being careful not to scratch the windshield glass.
NOTE: Disengage the driver's side link from the center crank arm when replacing with new one.

Fig 1: Disengaging Driver's Side Link
Courtesy of DAIMLERCHRYSLER CORPORATION
Use water pump pliers to engage securely the driver's side link with the center crank arm.

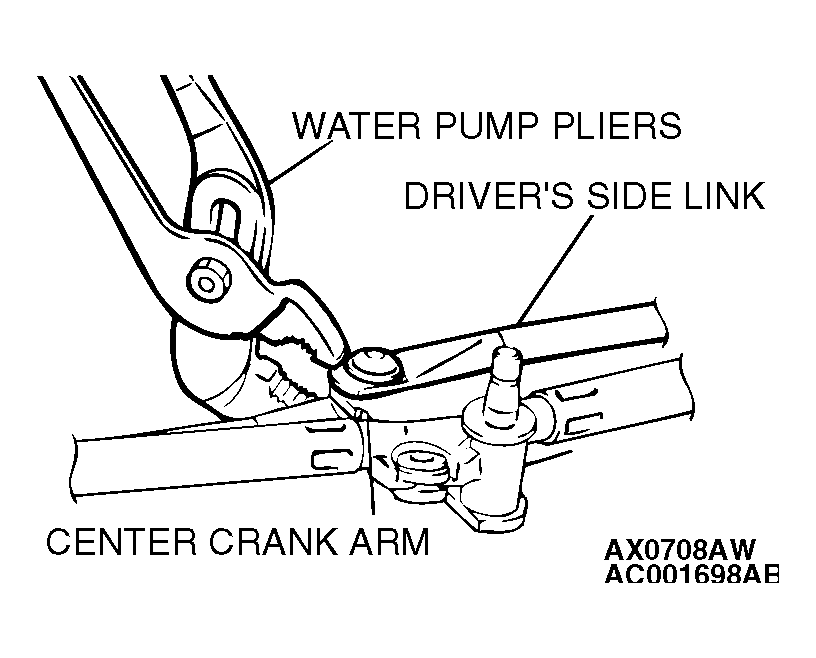

Fig 2: Identifying Water Pump Pliers And Center Crank Arm
Courtesy of DAIMLERCHRYSLER CORPORATION
Install the four mounting bolts in the shown order to install the wiper motor and link assembly.
Secure the wiper motor and link assembly.

Fig 3: Securing Wiper Motor And Link Assembly
Courtesy of DAIMLERCHRYSLER CORPORATION
