Wiper Motor at Stop Position Operation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the wiper motor connector to the battery as shown by (A) in the illustration.
  2. Run the windshield wiper motor at low speed. When the connector is disconnected from the battery while the motor is running, the motor should stop.
  3. Connect the terminals of the windshield wiper motor connectors as shown by (B) in the illustration.
  4. Check to see that the windshield wiper motor runs at low speed and then stops at the automatic stop position.

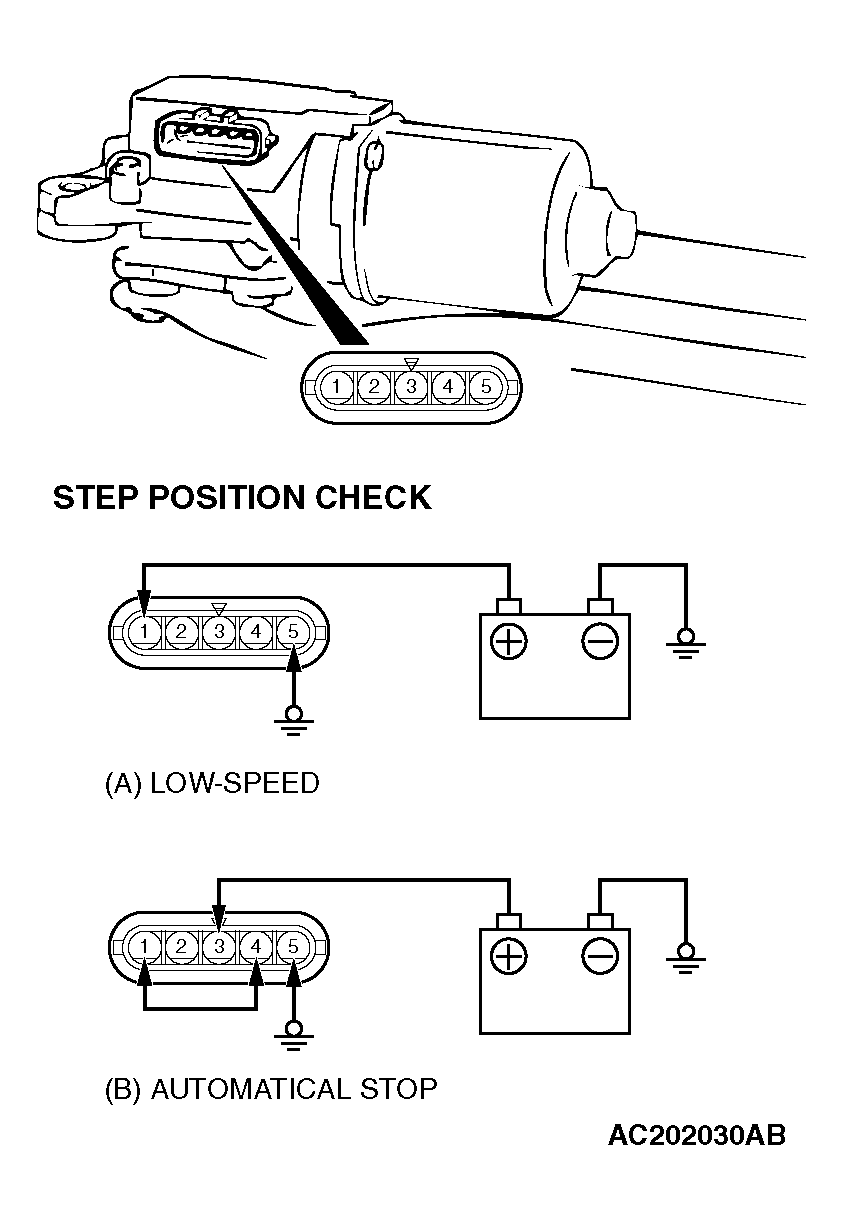

    Fig 1: Checking Wiper Motor Stop Operation
    G04539482Courtesy of DAIMLERCHRYSLER CORPORATION
