Wiper Motor at Low-Speed and High-Speed Operation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Connect the battery to the wiper motor as shown in the illustration, and then check the operation of the wiper motor at low speed and at high speed.

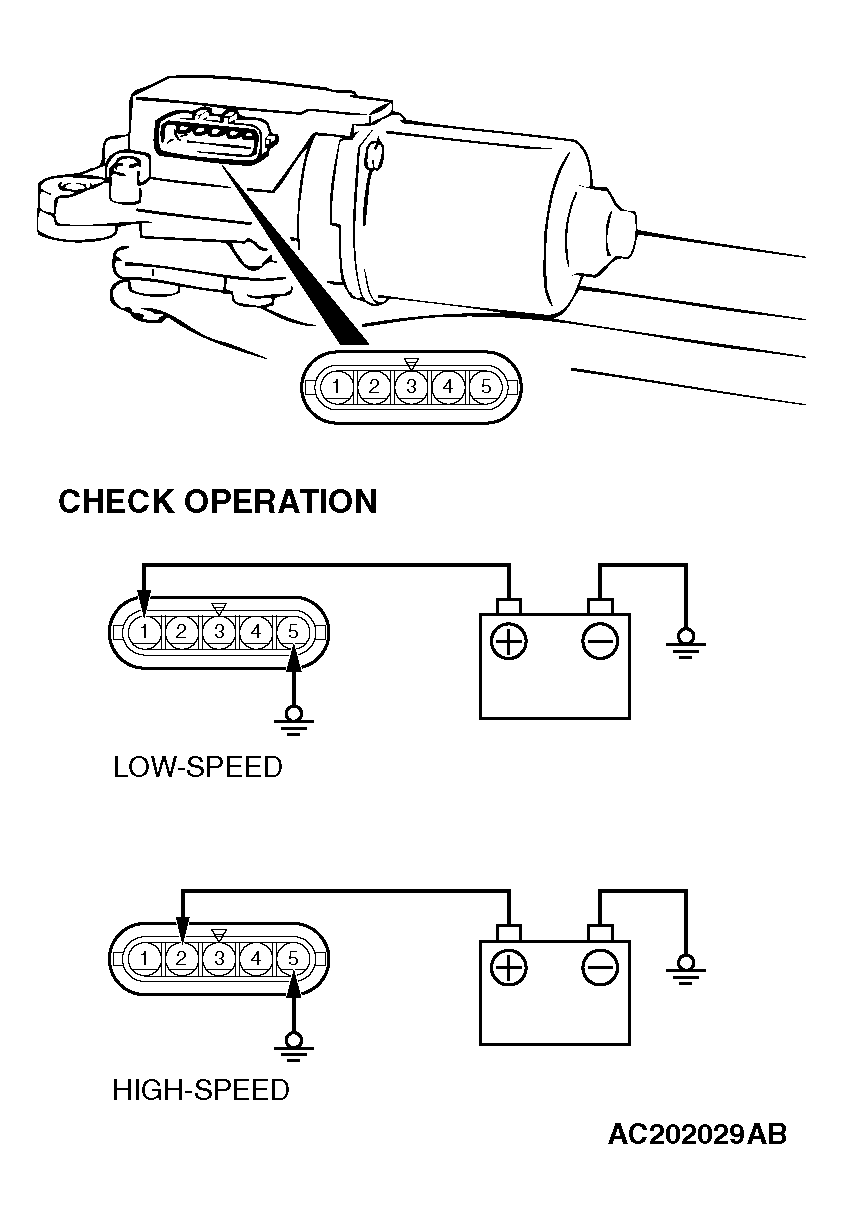

Fig 1: Checking Wiper Motor Speed Operation
G04539481Courtesy of DAIMLERCHRYSLER CORPORATION
