Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

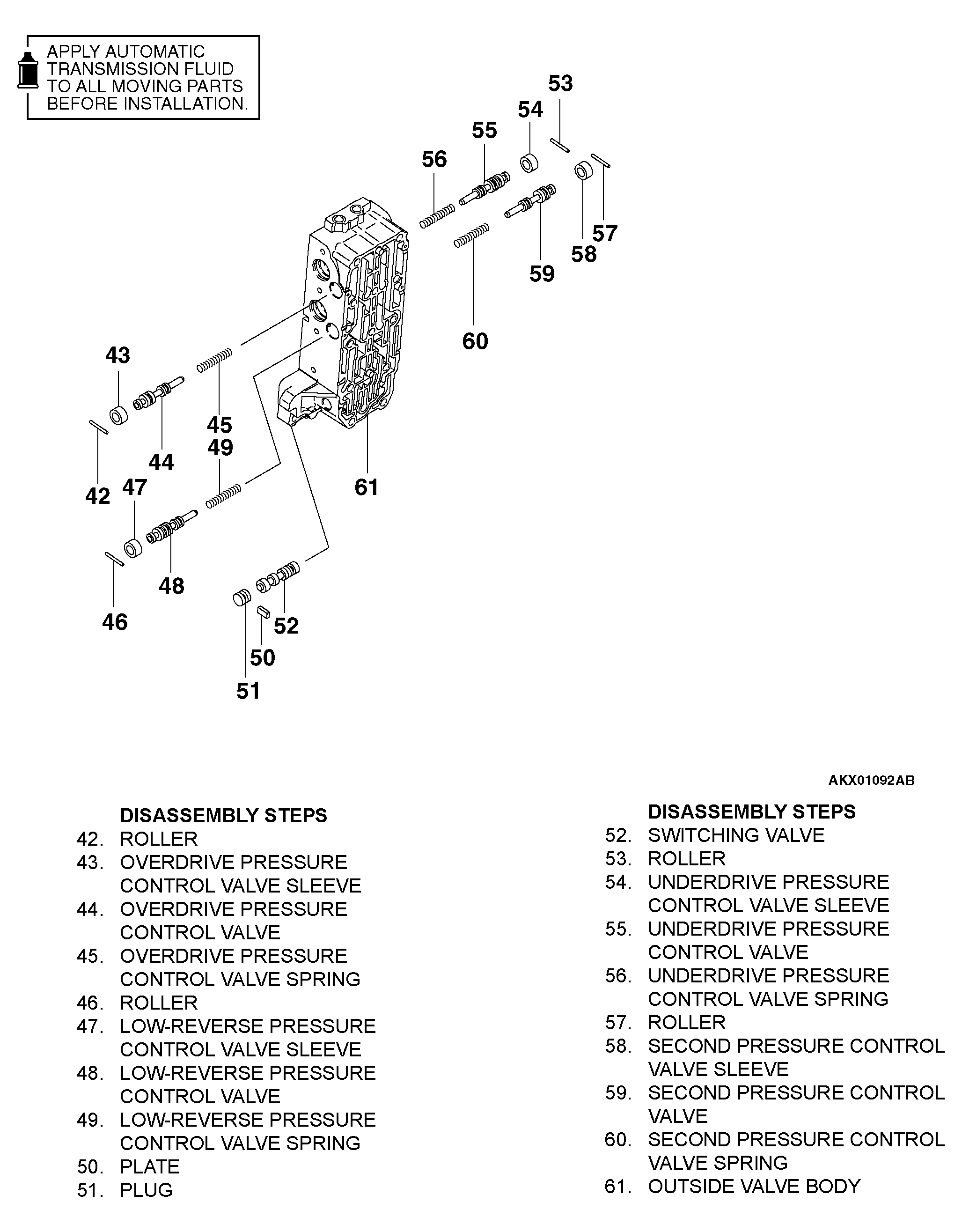

Fig 1: Exploded View Of Valve Body (1 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

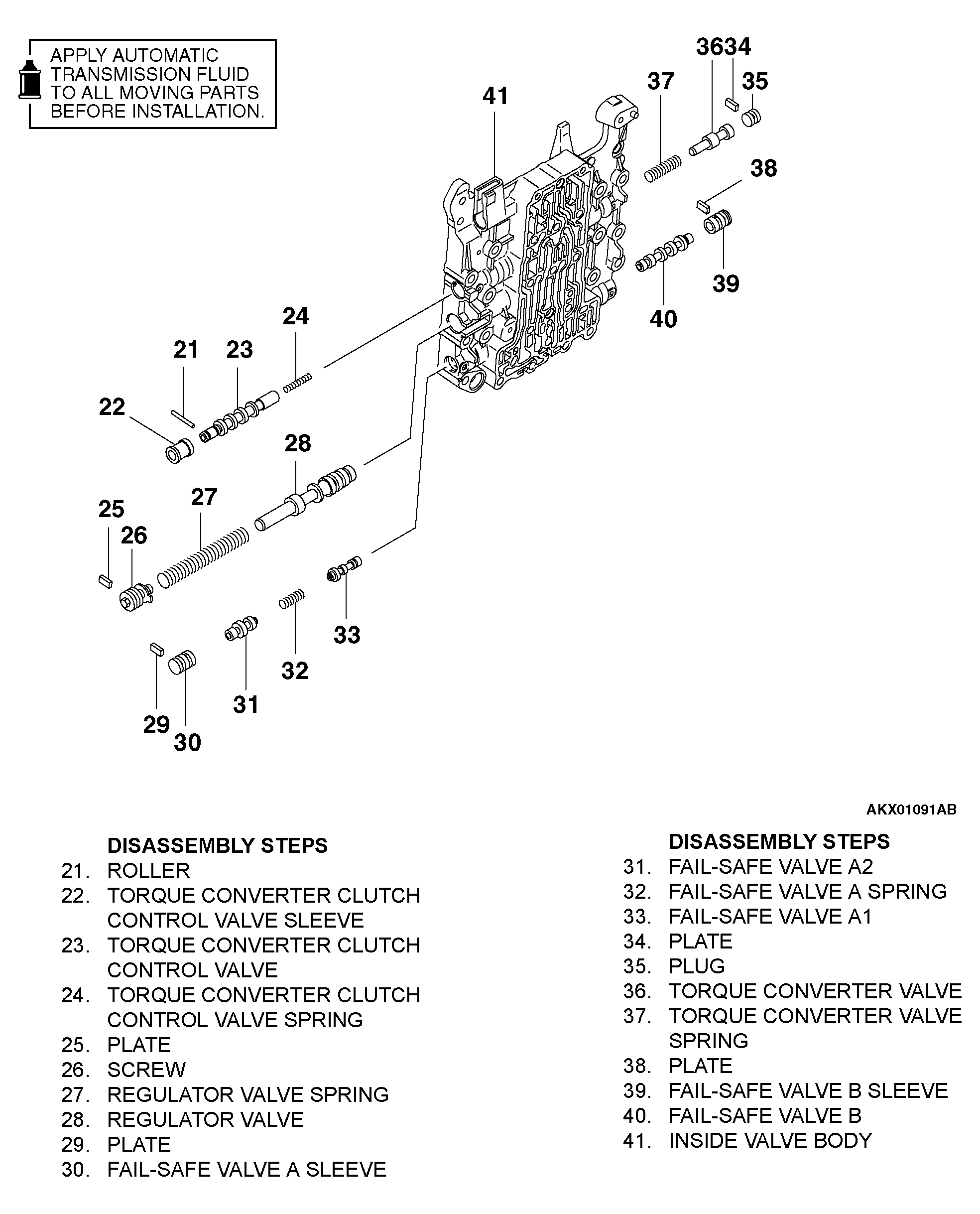

Fig 2: Exploded View Of Valve Body (2 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION

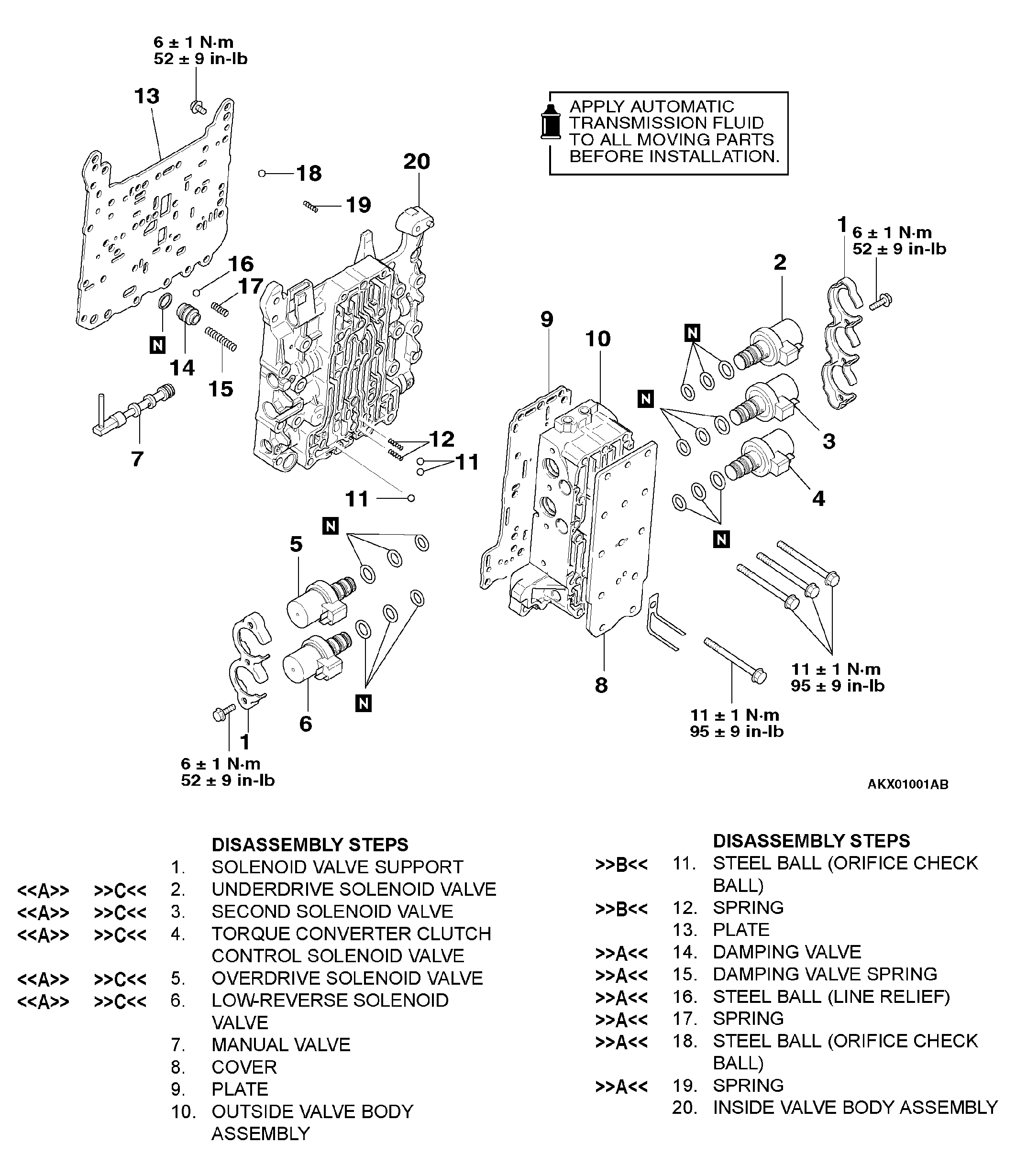

Fig 3: Exploded View Of Valve Body (3 Of 3)

Courtesy of DAIMLERCHRYSLER CORPORATION
