>> A << Spring, Steel Ball, Damping Valve And Damping Valve Spring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the two steel balls and two springs to the inside valve body as shown.
  2. Install the damping valve and spring to the inside valve body as shown.

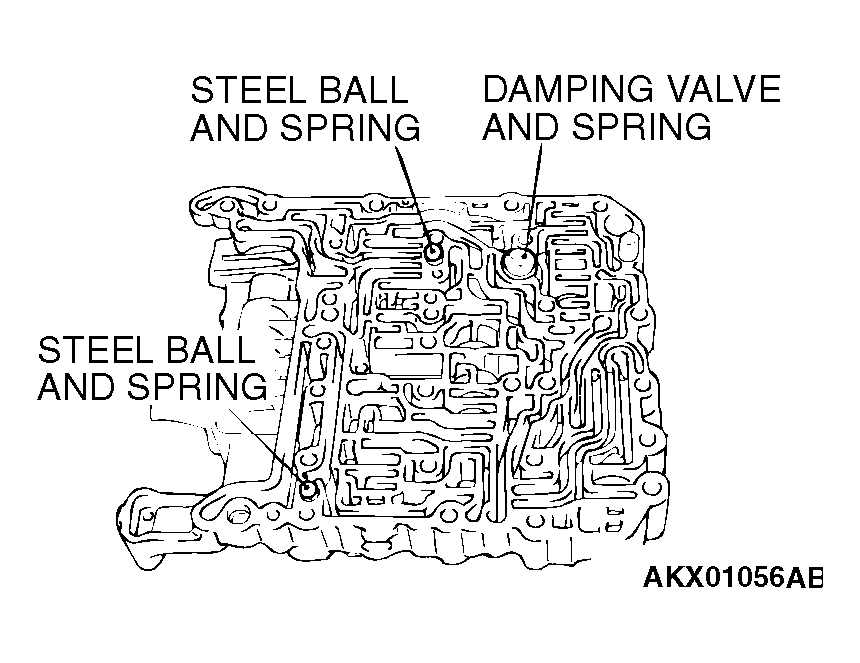

    Fig 1: Installing Damping Valve And Spring To Inside Valve Body
    G04539152Courtesy of DAIMLERCHRYSLER CORPORATION
