>> A << D-Ring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a D-ring in the groove in the underdrive clutch retainer and piston, and in the groove in the outside of the spring retainer. Be careful not to twist or damage the D-rings.
  2. Apply ATF or petroleum jelly (Vaseline) to the D-rings.

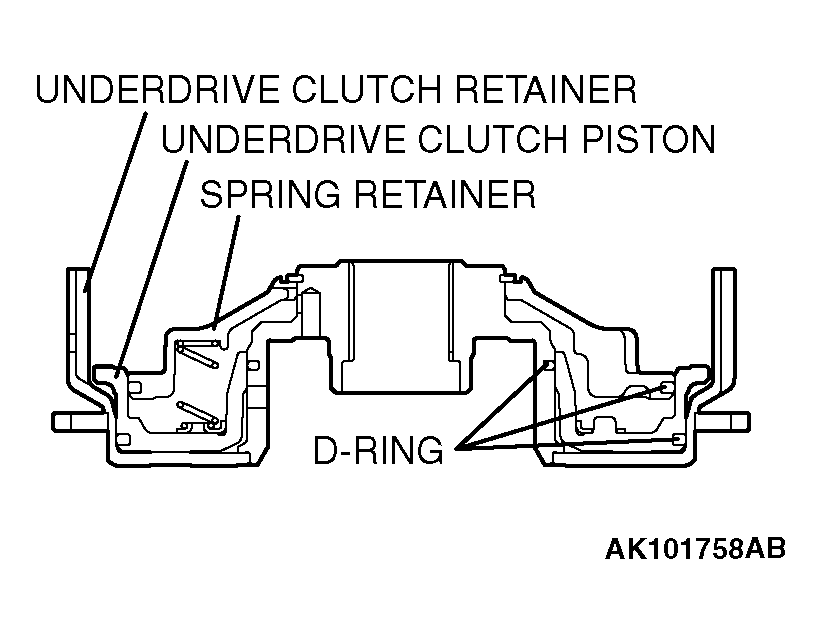

    Fig 1: Installing D-Ring In Groove Underdrive Clutch Retainer And Piston
    G04539113Courtesy of DAIMLERCHRYSLER CORPORATION
