Disassembly And Assembly: Notes

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

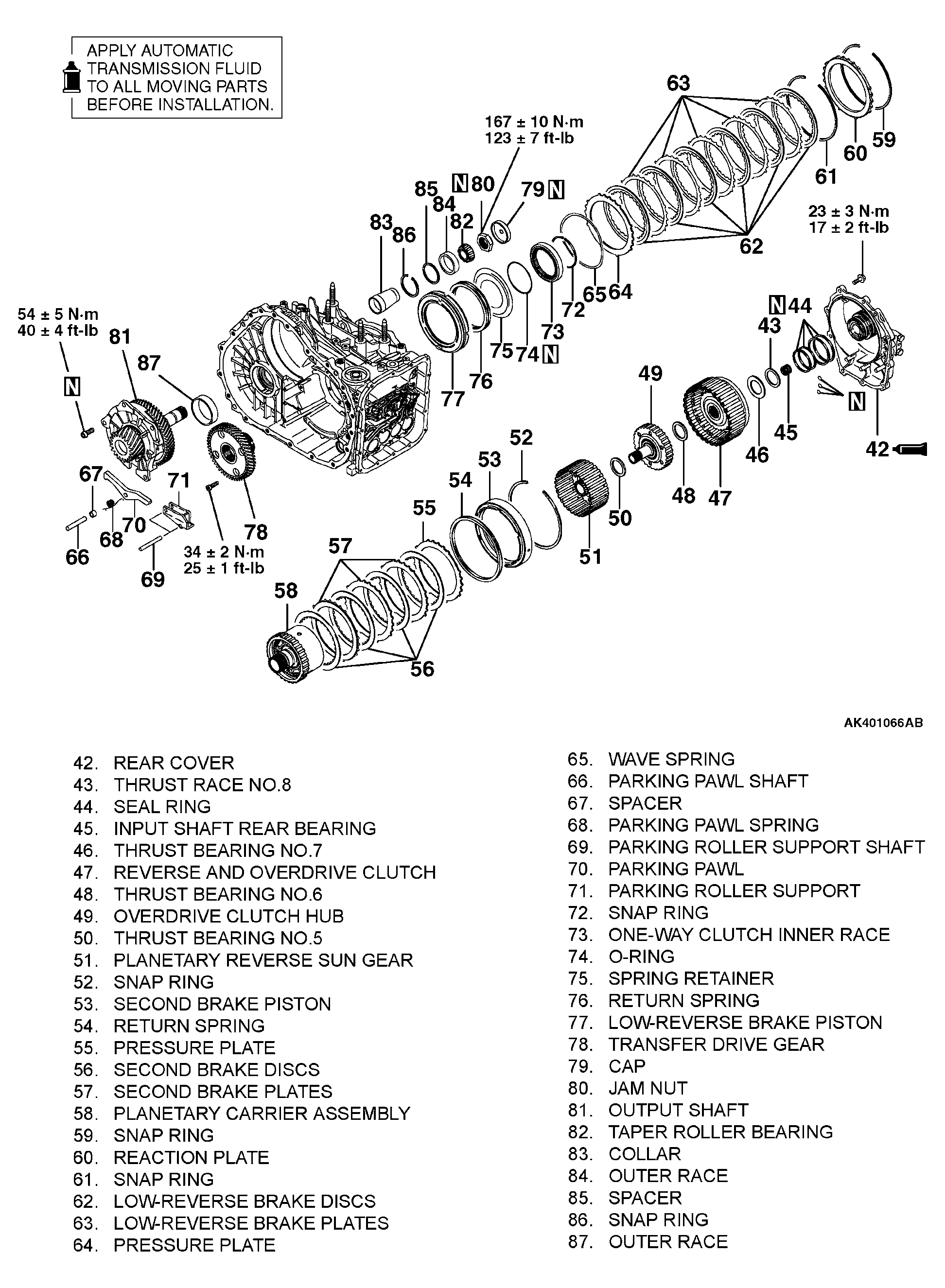

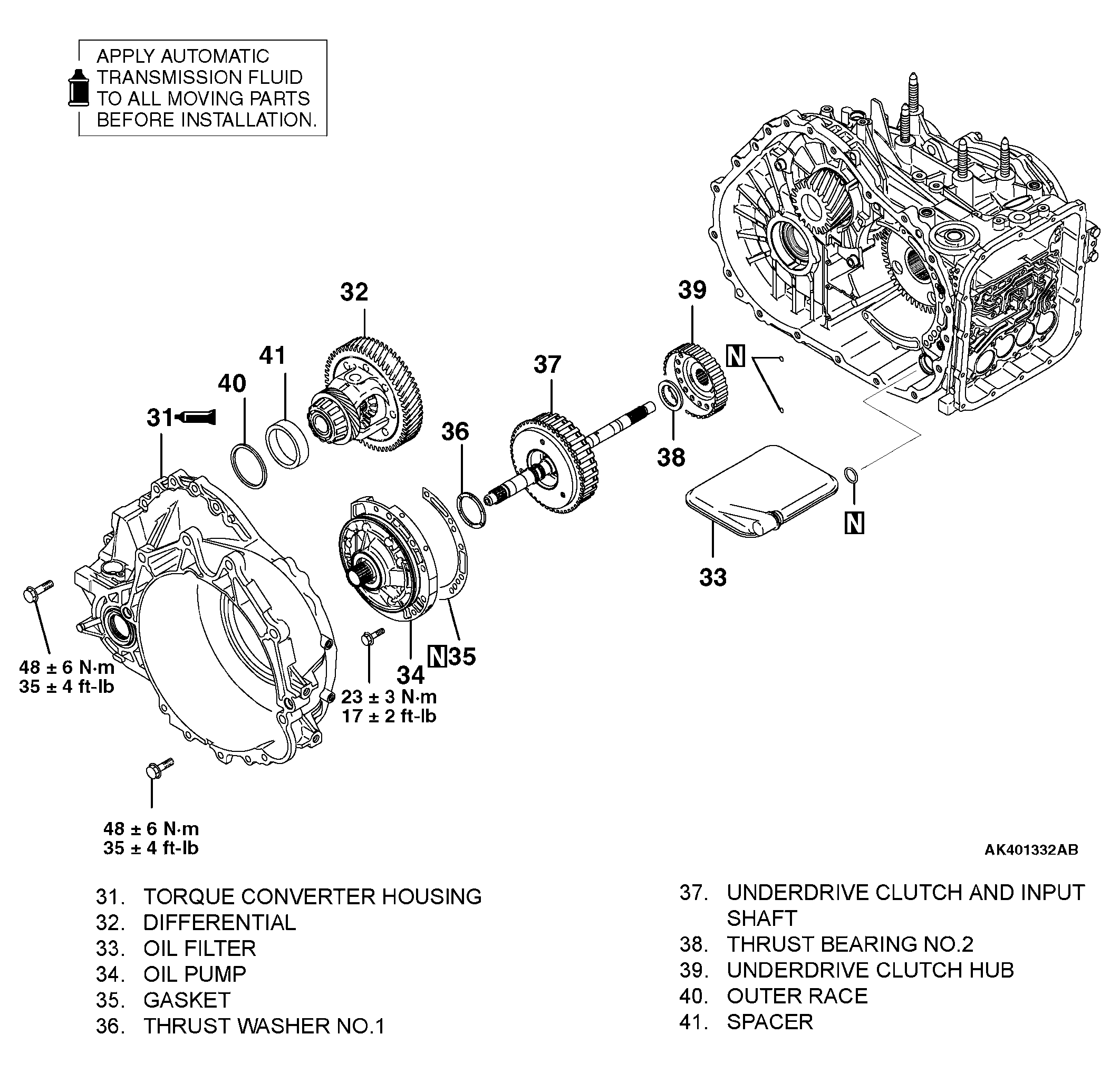

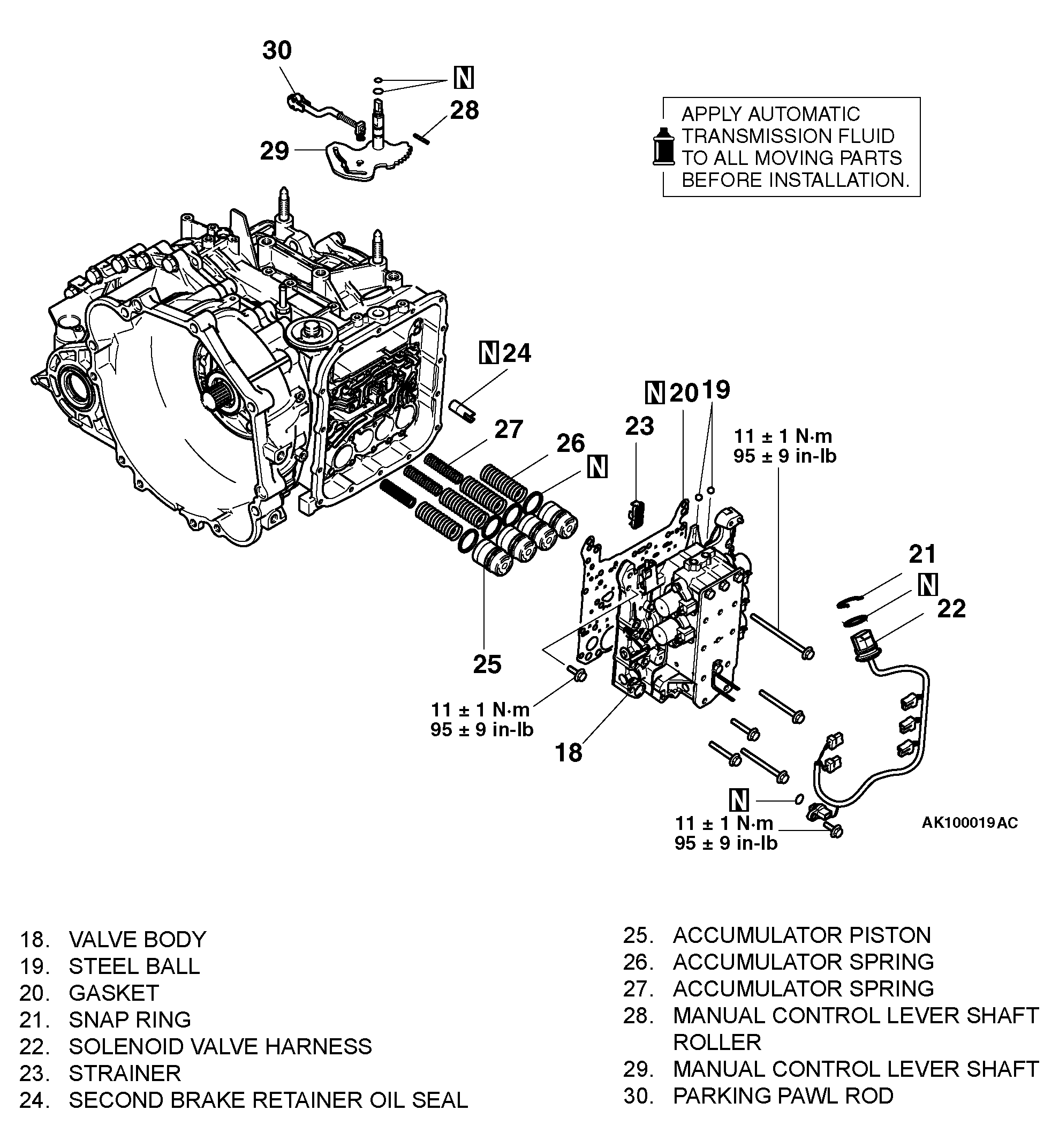

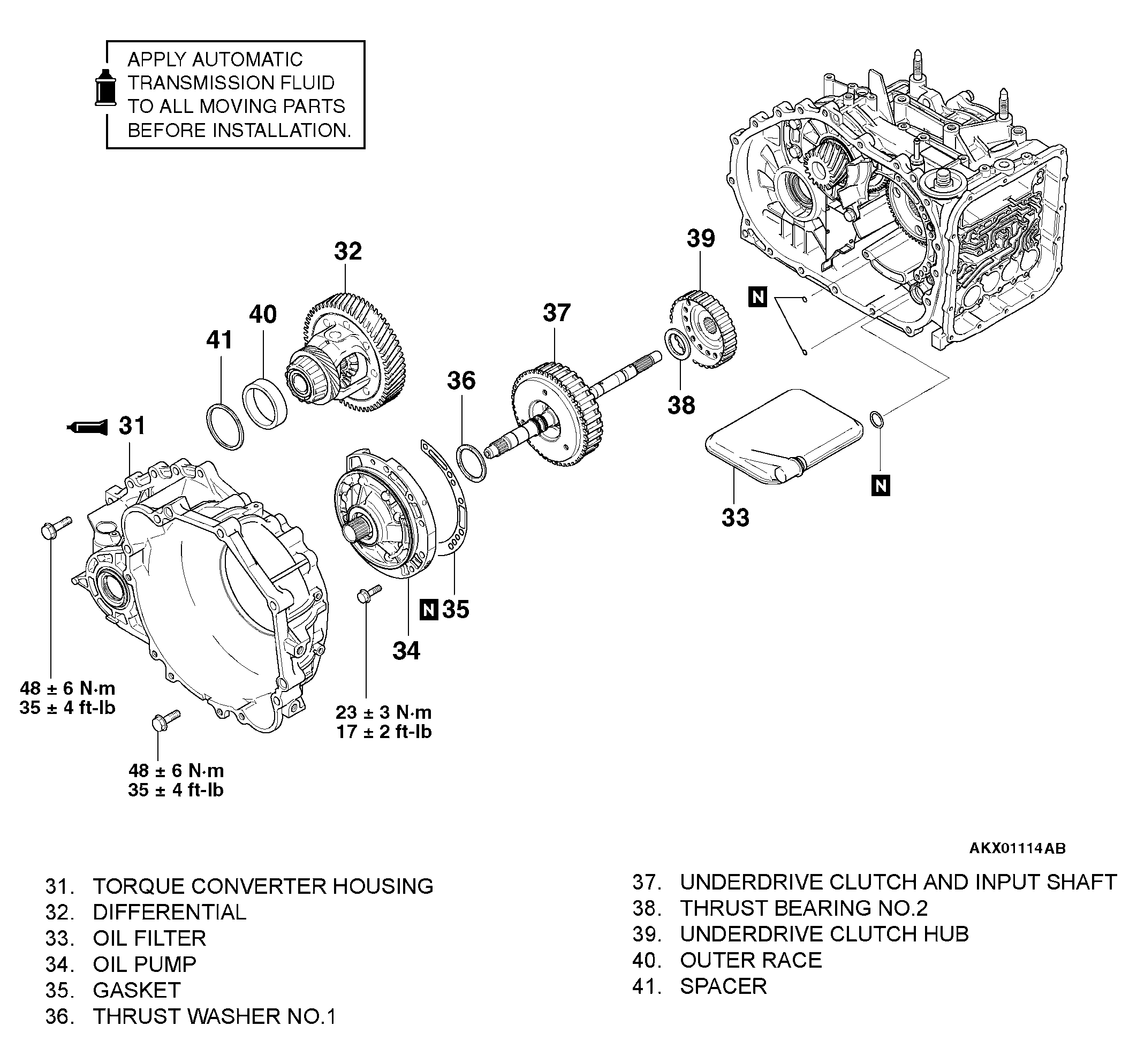

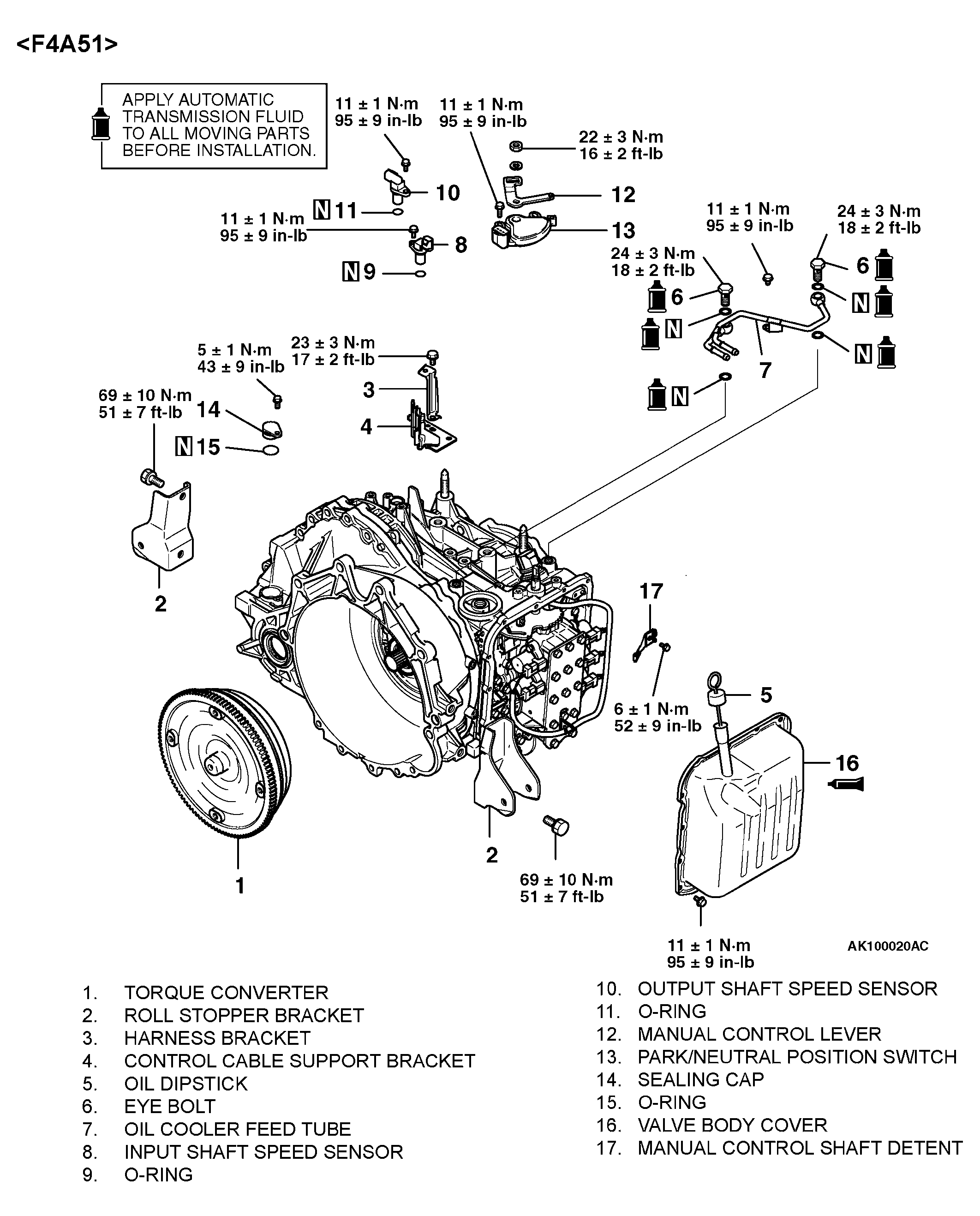

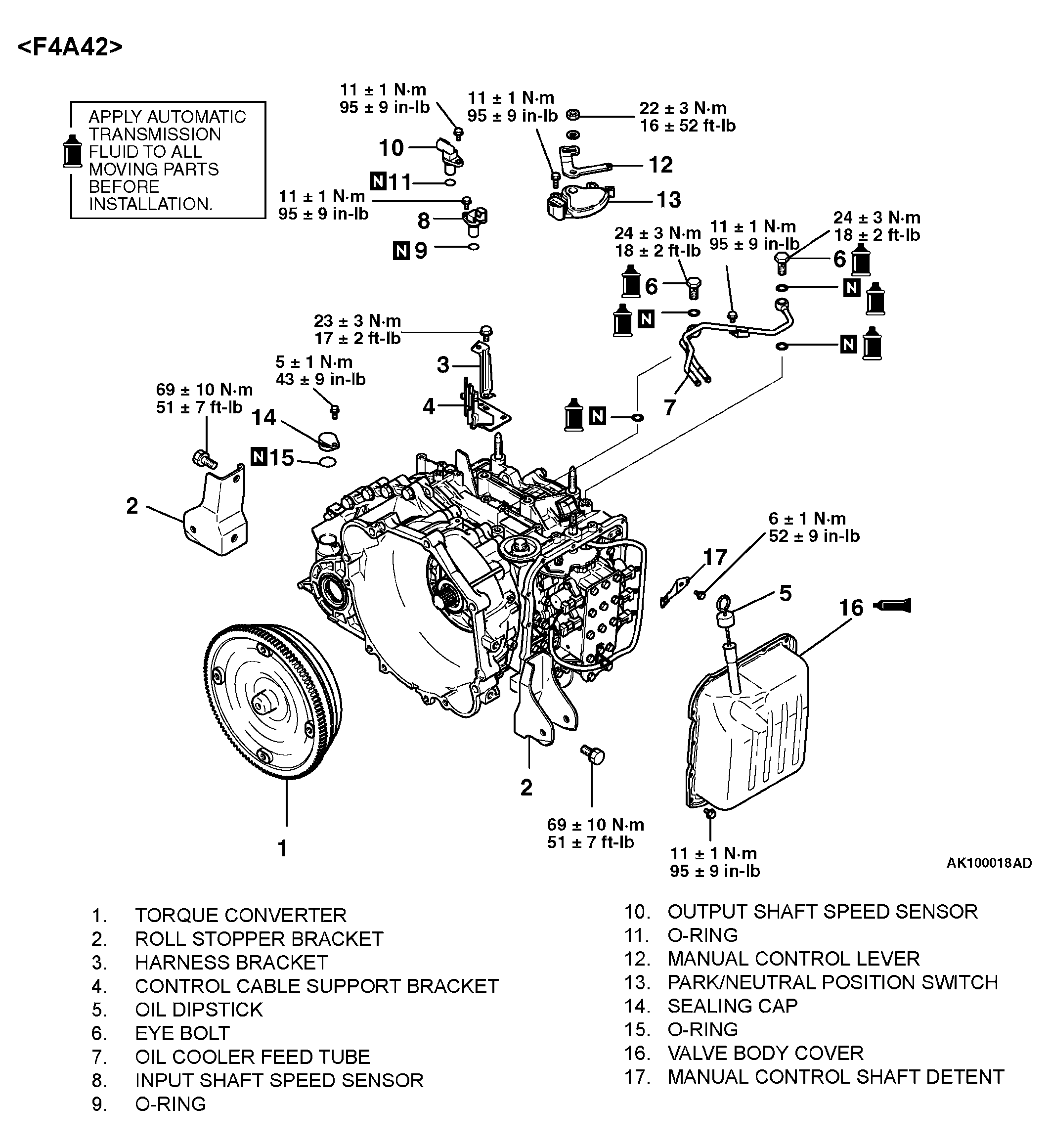

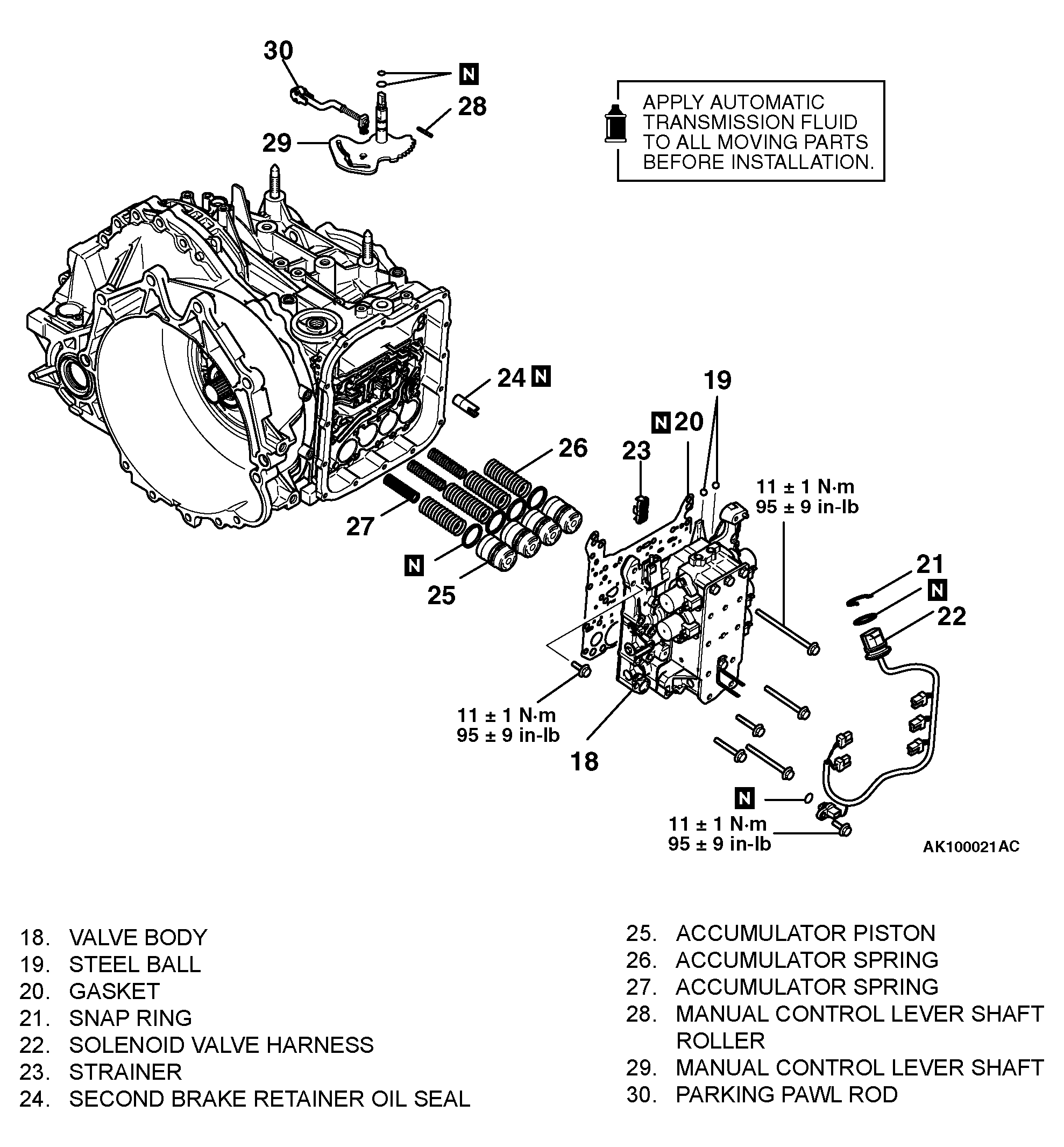

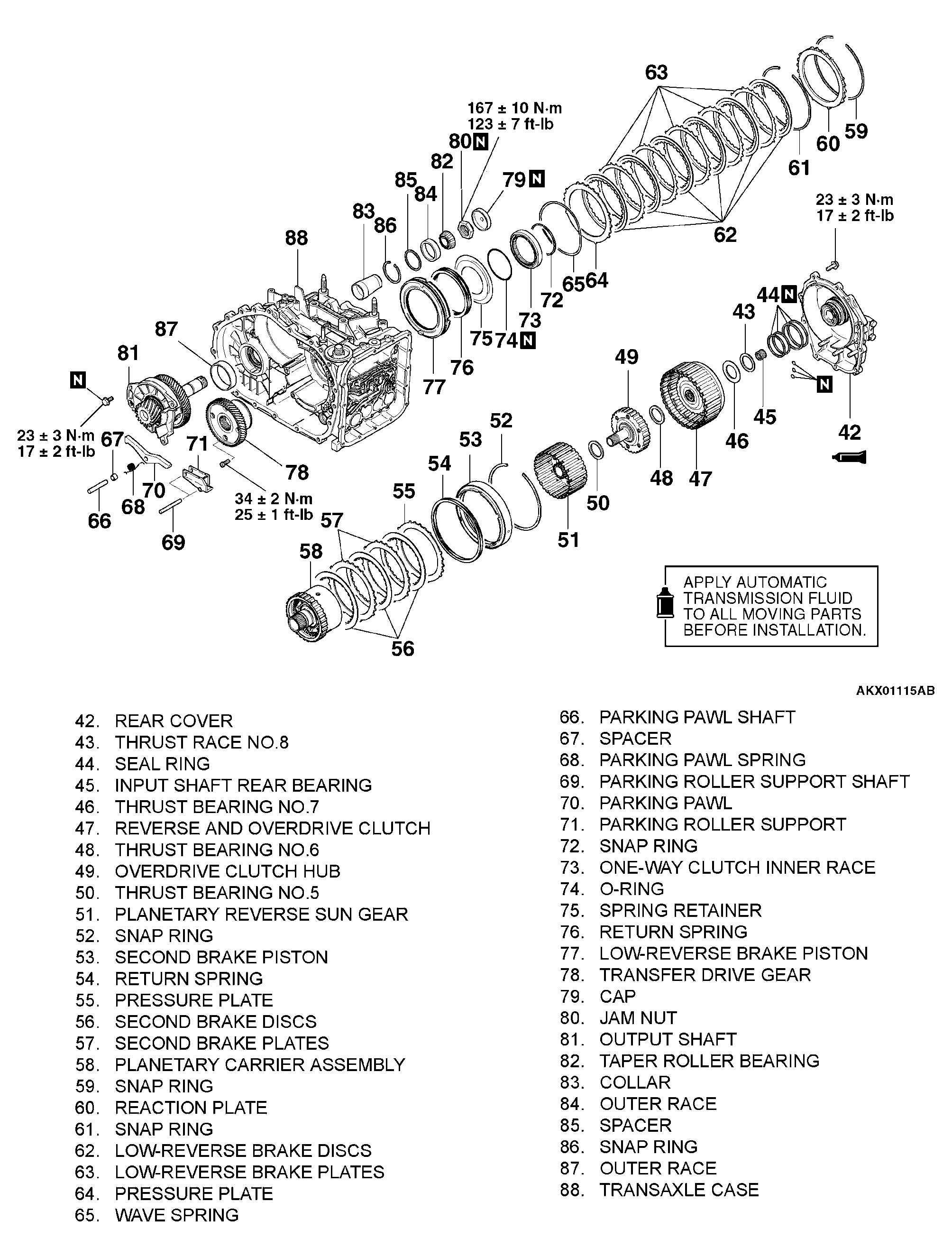

Fig 1: Exploded View Of Transaxle (1 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 2: Exploded View Of Transaxle (2 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 3: Exploded View Of Transaxle (3 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 4: Exploded View Of Transaxle (4 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 5: Exploded View Of Transaxle (5 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 6: Exploded View Of Transaxle (6 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 7: Exploded View Of Transaxle (7 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Fig 8: Exploded View Of Transaxle (8 Of 8)

Courtesy of DAIMLERCHRYSLER CORPORATION

Required Special Tools:

MB990607: Torque Wrench Socket
MB990930: Installer Adapter
MB990931: Installer Adapter
MB990935: Installer Adapter < F4A42 >
MB990936: Installer Adapter < F4A42 >
MB990938: Handle
MB991625: Special Socket (41)
MB991631: Clearance Dummy Plate < F4A42 >
MB991632: Clearance Dummy Plate < F4A51 >
MD998333: Oil Pump Remover
MD998338: Spring Compressor < F4A51 >
MD998350: Bearing Installer
MD998412: Guide
MD998903: Spring Compressor < F4A42 >
MD998913: Dial Gauge Extension
MD998924: Spring Compressor Retainer
