Disassembly And Assembly: Notes
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

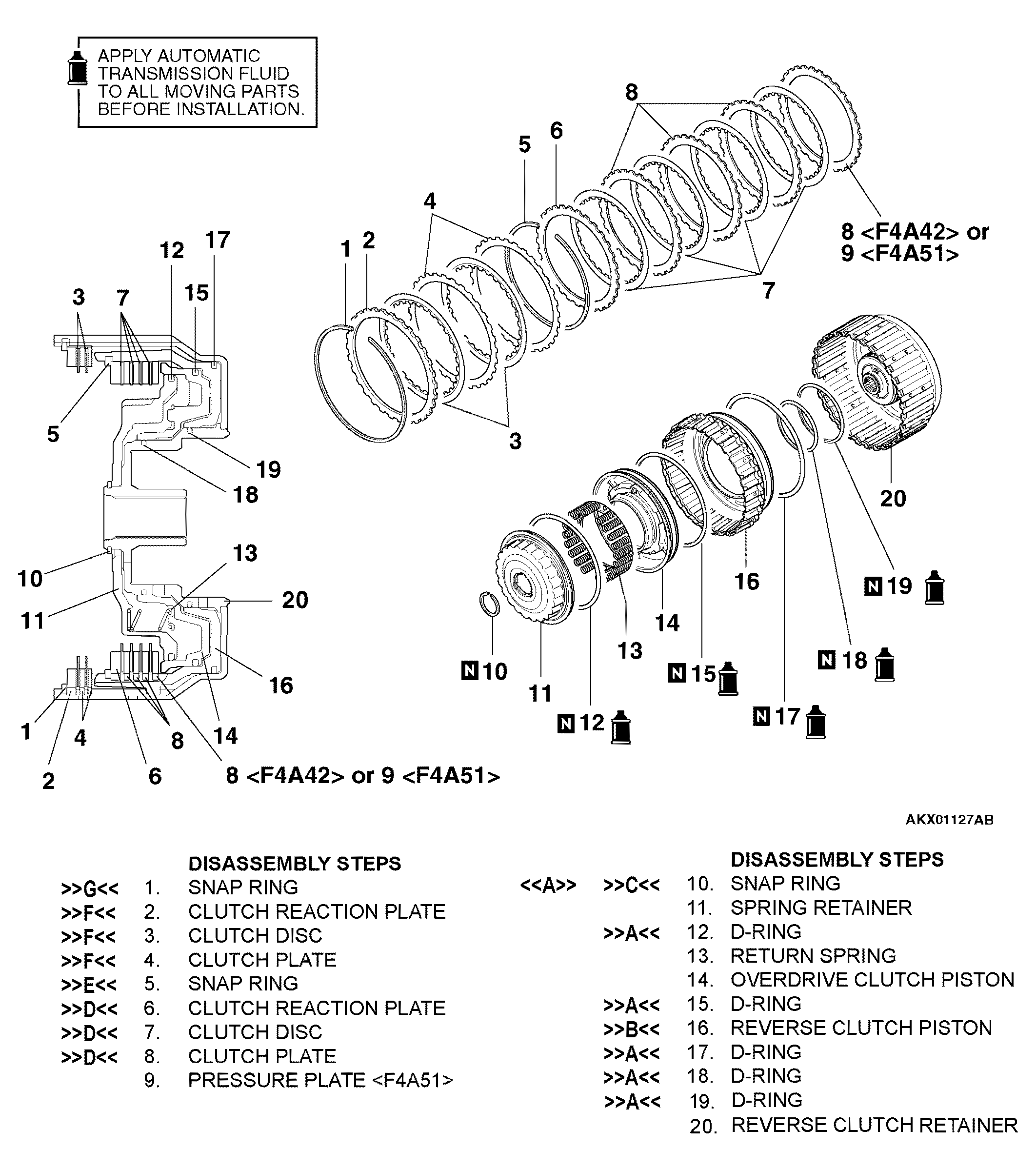

NUMBER OF CLUTCH DISCS AND PLATES
NUMBER OF CLUTCH DISCS AND PLATES
| MODEL | PRESSURE PLATE | CLUTCH DISC | CLUTCH PLATE | CLUTCH REACTION PLATE | |
|---|---|---|---|---|---|
| Over drive clutch | F4A42 | - | 4 | 4 | 1 |
| F4A51 | 1 | 4 | 3 | 1 | |
| Reverse clutch | - | 2 | 2 | 1 | |
Required Special Tools:
- MB991628: Spring Compressor < F4A42 >
- MB991629: Spring Compressor < F4A51 >
- MB991789: Spring Compressor < F4A51 >
- MB991790: Spring Compressor < F4A42 >
- MD998924: Spring Compressor Retainer
- MD999590: Spring Compressor
