<< A >> Snap Ring Removal

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set special tools MD999590 and MD998924 as shown in the illustration.
  2. Compress the return spring and remove the snap ring.

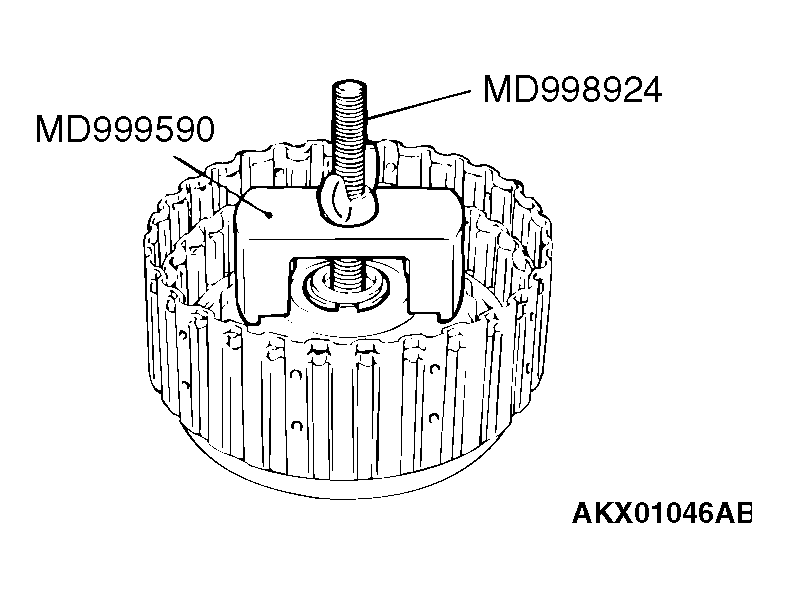

    Fig 1: Removing Snap Ring
    G04539119Courtesy of DAIMLERCHRYSLER CORPORATION
