>> G << Snap Ring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the snap ring into the groove of reverse clutch retainer.
  2. Set special tools MB991790 < F4A42 > or MB991789 < F4A51 > and MD998924 as shown in the illustration, and compress the clutch element.
  3. Check that the clearance between the snap ring and the clutch reaction plate is within the standard value. If not within the standard value, select a snap ring so that it is.

    Standard value: 1.5 - 1.7 mm (0.0591 - 0.0669 inch)

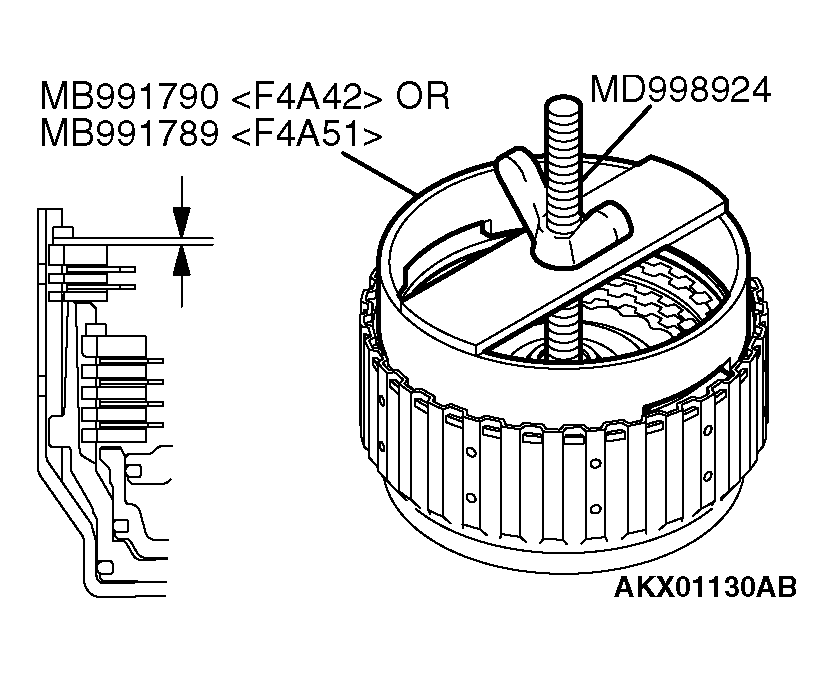

    Fig 1: Installing Snap Ring Into Groove Of Reverse Clutch Retainer
    G04539127Courtesy of DAIMLERCHRYSLER CORPORATION
