>> E << Snap Ring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the snap ring into the groove in the reverse clutch piston.
  2. Set special tools MB991628 < F4A42 >, MB991629 < F4A51 > and MD998924 as shown in the illustration, and compress the clutch element.
  3. Check that the clearance between the snap ring and the clutch reaction plate is within the standard value. If not within the standard value, select a snap ring so that it is.

    Standard value: 1.6 - 18 mm (0.0630 - 0.0709 inch)

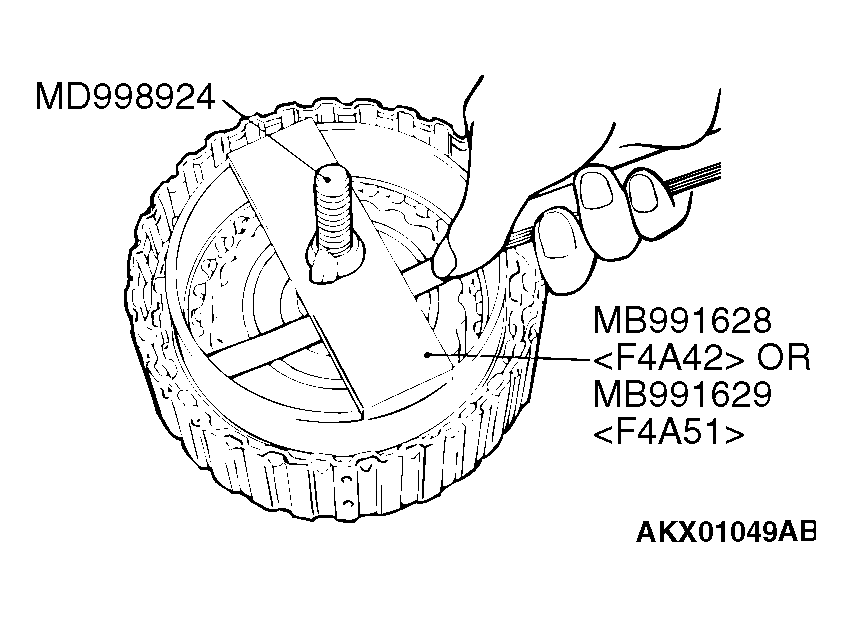

    Fig 1: Checking Clearance Between Snap Ring And Clutch Reaction Plate
    G04539124Courtesy of DAIMLERCHRYSLER CORPORATION
