>> D << Pressure Plate/Clutch Plate/Clutch Disc/Clutch Reaction Plate Installation
WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
- Install the pressure plate in the direction shown < F4A51 >.CAUTION: Immerse the clutch disc in ATF before assembling it. IF the clutch disc is new, soak it in ATF for more than two hours.
- Assemble the clutch discs and clutch plates, one on top of the other, inside the reverse clutch piston.
NUMBER OF CLUTCH DISCS AND PLATES

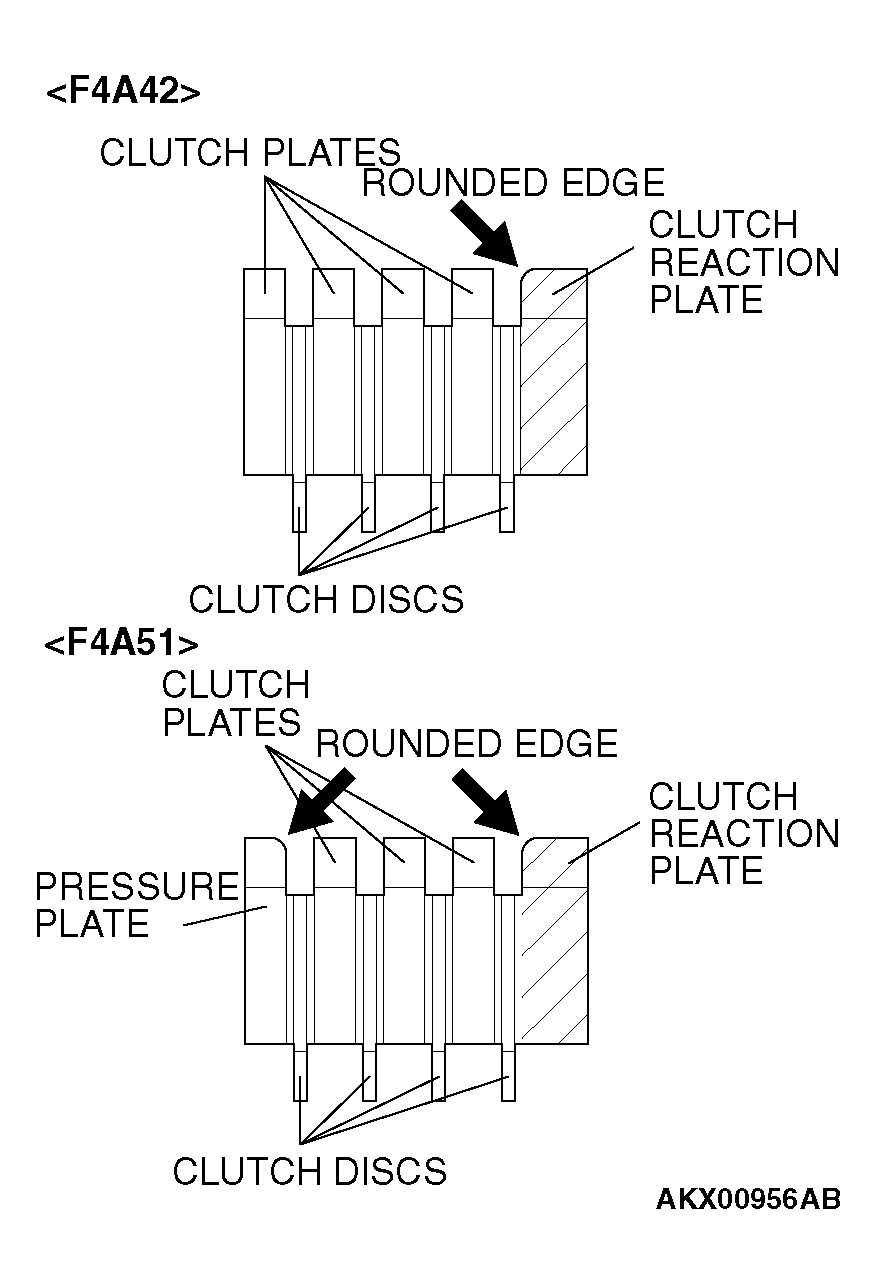

NUMBER OF CLUTCH DISCS AND PLATESMODEL PRESSURE PLATE CLUTCH DISC CLUTCH PLATE CLUTCH REACTION PLATE F4A42 - 4 4 1 F4A51 1 4 3 1 - Install the clutch reaction plate in the direction shown.
