Home >> Chrysler >> 2001 >> Sebring LX, 2D Convertible >> Repair and Diagnosis >> External Pages >> Different car >> Section 42 (Overhaul - Automatic Transmission - Coupe) >> Reverse And Overdrive Clutch >> Disassembly And Assembly >> Assembly Service Points >> >> C << Snap Ring Installation

>> C << Snap Ring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set special tools MD999590 and MD998924 as shown in the illustration.
  2. Tighten the nut on the special tool to press down on the spring retainer and reverse clutch retainer, and then install the snap ring.
  3. Check that the clearance between the snap ring and the return spring retainer is within the standard value. If not within the standard value, select a snap ring so that it is.

    Standard value: 0 - 0.09 mm (0 - 0.0035 inch)

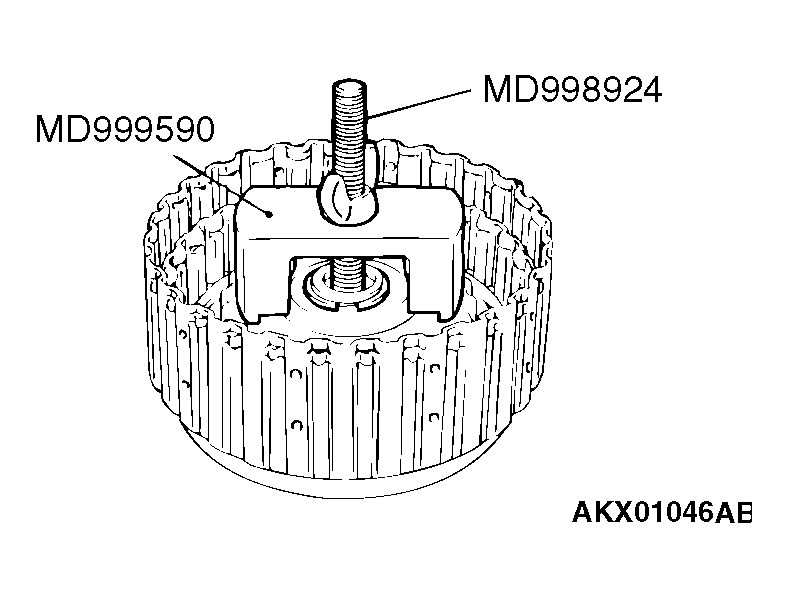

    Fig 1: Installing Snap Ring
    G04539122Courtesy of DAIMLERCHRYSLER CORPORATION
