>> B << Reverse Clutch Piston Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.

Align the outer circumference holes ("A" and "B") of the reverse clutch piston and the reverse clutch retainer to assemble them.

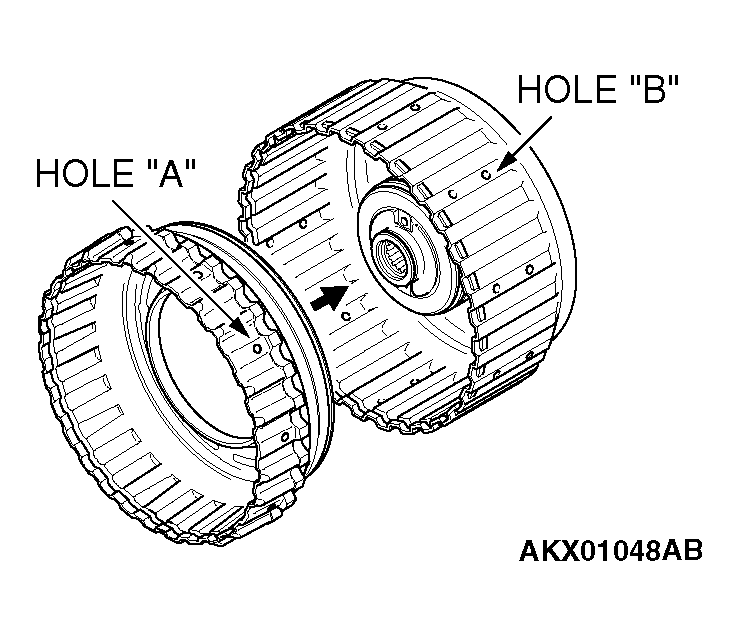

Fig 1: Aligning Outer Circumference Holes ("A" And "B")
G04539121Courtesy of DAIMLERCHRYSLER CORPORATION
