>> A << D-Ring Installation

WARNING: This page is about a different car, the 2005 Dodge Stratus and 2005 Chrysler Sebring. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install D-rings in the grooves on the reverse clutch retainer, piston, overdrive clutch piston and spring retainer. Be careful not to twist or damage the D-rings.
  2. Apply ATF or petroleum jelly (Vaseline) to D-rings.

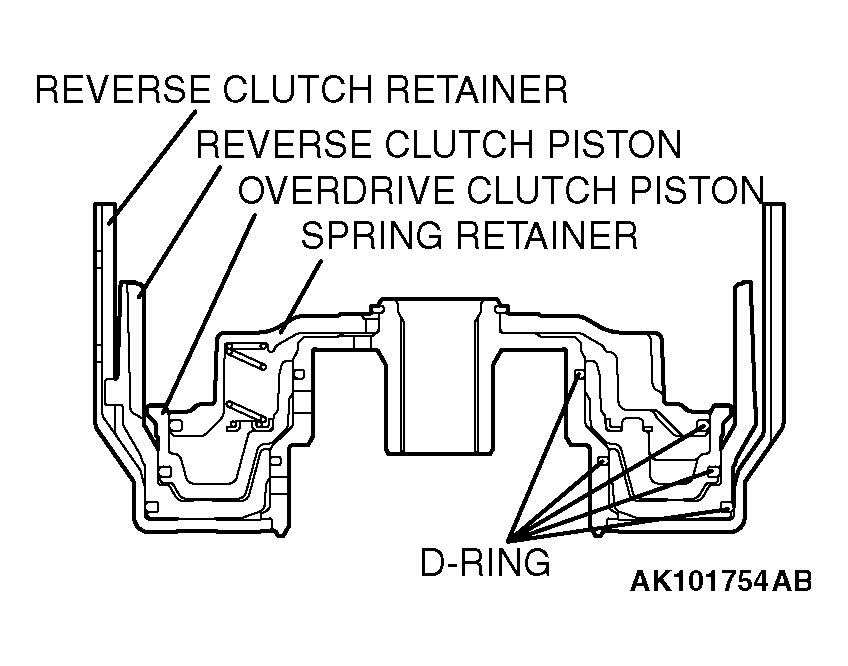

    Fig 1: Applying ATF Or Petroleum Jelly (Vaseline) To D-Rings
    G04539120Courtesy of DAIMLERCHRYSLER CORPORATION
